Hiab is the world's leading provider of on-road load handling equipment, intelligent services, smart and connected solutions.

Hiab - We keep everyday life moving

WALTCO MDL/HP Series

PagePreview

Service and Support

Request a quote

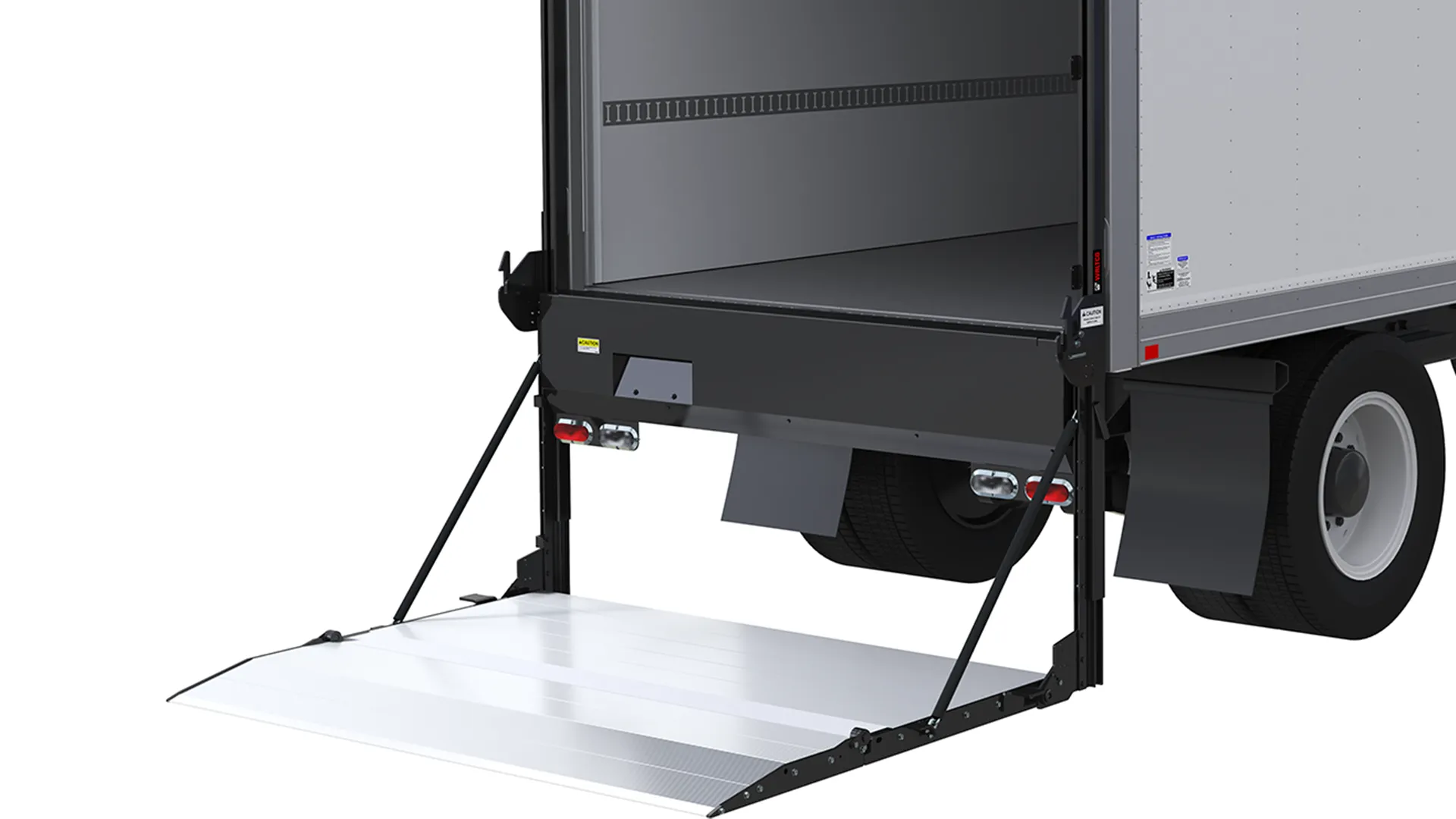

Features vertical tracks that enable the platform to move via cables or chains in conjunction with a hydraulic cylinder (or two hydraulic cylinders directly attached to the platform) for maximum strength and performance. The tracks are welded to the rear frame of a trailer, pick-up truck, service, stake or truck body to ensure optimum safety. The platform conveniently stores over the rear door during travel.

1. MDL/HP-16

1. MDL/HP-20

1. MDL/HP-30

2. MDL/HP-16

2. MDL/HP-20

2. MDL/HP-30

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

Mid-Level Rail Gate, in a steel/aluminum platform has a lifting capacity up to 3,000 lb's. This gate is geared towards straight trucks, cube, cutaway, or step vans, flat beds, and dual wheel service bodies.

USP_883668

Mid-level Hinged Platform Rail, up to 3,000 lb. capacity

Bed height range is dependent upon the platform size. The 42" deep platform requires a minimum bed height of 36", while the 48" and 54" deep platforms require a minimum of 40" from the floor of the bed to the ground.

USP_883669

Bed heights 36"/40" - 56"

This unique gate features a hinged design, presenting a steel mainframe with an extruded aluminum platform. We also provide bolt-on platform sidebars, allowing easy replacement of extrusion boards.

USP_883670

Modular Design

This gate comes fully equipped with anti-skid treadplate, built-in toe deflector, and dedicated ground.

USP_883671

Safety+ Features

USP_676805

Above Floor Travel

Powder coat finish on key liftgate components produces a high-quality, corrosion resistant finish.

USP_883687

Powder Coat Finish

Equipped with torsion spring assist to make folding and unfolding the platform simple and smooth.

USP_677167

Easy-Fold

Hiab Corporate

English

Australia

Austria

Deutsch

Belgium

Dutch

Française

Brazil

Português

China

中文

Czech Republic

Čeština

Denmark

Dansk

Finland

Suomi

France

Germany

India

Italy

Italiano

Japan

日本語

Latin America

Español

Netherlands

Norway

Norsk

Poland

Polski

Singapore

Spain

Sweden

Svenska

Ukraine

Yкраїнська

United Kingdom

United States

BrandsLink

General inquiries

<p>Use the&nbsp;<strong><a href="/en-us/dealerservice-point-map">Hiab Locator</a></strong>&nbsp;to find more relevant dealers and service points.</p>

Hiab webshop

en-GB

en-AU

en-IN

fr-FR

cs-CZ

en-SG

en-CA

fr-CA

Footer Block

<h3><a href="/en-us/dealerservice-point-map?dealers=true&amp;services=false&amp;offices=false&amp;hiab=true&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=true&amp;multilift=false&amp;del=false&amp;waltco=false&amp;zepro=false">Find your local HIAB &amp; MOFFET Sales Representative</a></h3>
<h3><a href="/en-us/dealerservice-point-map?dealers=false&amp;services=true&amp;offices=false&amp;hiab=true&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=true&amp;multilift=false&amp;del=false&amp;waltco=false&amp;zepro=false">HIAB or MOFFETT Service Center</a></h3>
<h3><a title="Find a Dealer" href="/en-us/dealerservice-point-map?dealers=true&amp;services=false&amp;offices=false&amp;hiab=false&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=false&amp;multilift=false&amp;del=false&amp;waltco=true&amp;zepro=false">Find a WALTCO Dealer</a> or&nbsp; <a href="/en-us/dealerservice-point-map?dealers=false&amp;services=true&amp;offices=false&amp;hiab=false&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=false&amp;multilift=false&amp;del=false&amp;waltco=true&amp;zepro=false">WALTCO Service Center</a></h3>
<h3><a href="/en-us/dealerservice-point-map?dealers=true&amp;services=false&amp;offices=false&amp;hiab=false&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=false&amp;multilift=true&amp;del=false&amp;waltco=false&amp;zepro=false">Find a MULTILIFT Dealer</a> or <a href="/en-us/dealerservice-point-map?dealers=false&amp;services=true&amp;offices=false&amp;hiab=false&amp;effer=false&amp;loglift=false&amp;jonsered=false&amp;moffett=false&amp;multilift=true&amp;del=false&amp;waltco=false&amp;zepro=false">MULTILIFT Service Center</a></h3>
<p>&nbsp;</p>
<p><strong>NATIONAL SUPPORT CENTER: <a href="tel:+1 419 482 6000">+1 419 482 6000</a></strong></p>

Hiab locator

Contact Us

Find a product

City, Muni & Gov Services

Concrete & Foundations

Construction & Building Supplies

Forestry & Tree Work

Landscaping, Aggregates & Agriculture

Last Mile Delivery & Retail

Material Handling & Recycling

Oil, Gas & Mining

Railroads & Utilities

Specialist Lifting & Recovery

Industry Application Overview

Applications

Products

Range types

Features & Functions

Control system

Industry and Application

Attachments

Warranty information

HiConnect

Original spare parts

<p>Presenting the new 110tm loader crane from HIAB.</p>

HIAB iQ.1188 HIPRO

Knuckle Boom Cranes

Industry and Applications

Warranty

HiVision

HiVision for forestry cranes

Material handler loaders

Hooklift series types

Cable Roll-Off Series

Hooklifts & Roll-off cable hoists

Accessories

Features and Functions

HiConnect for MOFFETT truck mounted forklifts

Truck Mounted Forklifts

WALTCO overview

Product types

Solar charger

Documents and manuals

Technical support

Discover WALTCO Solar Charger

Liftgates

Contact forms

Find contact

USA National Support Center

HIAB Crane & Loader Sales

HIAB Crane & Loaders Service Center

MOFFETT Sales

MOFFETT Service Center

MULTILIFT Dealer

WALTCO Sales

WALTCO Dealers and Service Centers

Hiab USA Recruitment

+1 419 482 6000

Contact us

Find a Service Center

Hiab USA Service Options

Hiab USA Tech Support

Warranty Information

Hiab USA Parts & Accessories

Hiab USA Webshop

Hiab USA Engineering Services

Hiab USA Installation Services

HiSkill Training Simulator

Hiab Webshop

Parts, Services & Support

Digital solutions

Electrification & Sustainability

Remote Operations/HiVision

Control, Safety, & Features Technology

Innovation & Technology

Hiab Locator

About Us

Sustainability

Careers

Media

Hiab Apparel Store

HiConnect portal

Settings

Find a dealer

<ul>
<li><strong>Modify search test - </strong>Check the spelling, expand abbreviations, use fewer or more general keywords.</li>
<li><strong>Browse instead - </strong>Try the navigational options in the menu at the top left of the page.</li>
<li><strong>Are you looking for spare parts? - </strong>Contact your <a href="/en-us/dealerservice-point-map?zoom=10&amp;effer=false&amp;hiab=false&amp;jonsered=false&amp;loglift=false&amp;moffett=false&amp;multilift=false&amp;zepro=false&amp;installation=false&amp;mobileservice=false&amp;service=false&amp;spareparts=false&amp;training=false&amp;warranties=false&amp;forestryCranes=false&amp;hookliftsAndSkiploaders=false&amp;loaderCranes=false&amp;recyclingCranes=false&amp;tailLifts=false&amp;truckMountedForklifts=false&amp;dealers=true&amp;services=false">local dealer</a> or go to our <a href="https://webshop.hiab.com/en/?utm_source=permanent_links&amp;utm_medium=hiab_com&amp;utm_campaign=links&amp;utm_content=top_menu" target="_blank" rel="noopener">Webshop</a></li>
<li><strong>Are you looking for prices? -</strong> Contact your <a href="/en-us/dealerservice-point-map?zoom=10&amp;effer=false&amp;hiab=false&amp;jonsered=false&amp;loglift=false&amp;moffett=false&amp;multilift=false&amp;zepro=false&amp;installation=false&amp;mobileservice=false&amp;service=false&amp;spareparts=false&amp;training=false&amp;warranties=false&amp;forestryCranes=false&amp;hookliftsAndSkiploaders=false&amp;loaderCranes=false&amp;recyclingCranes=false&amp;tailLifts=false&amp;truckMountedForklifts=false&amp;dealers=true&amp;services=false">local dealer</a> for product prices</li>
<li><strong>Contact us - </strong>Find your <a href="/en-us/dealerservice-point-map?zoom=10&amp;effer=false&amp;hiab=false&amp;jonsered=false&amp;loglift=false&amp;moffett=false&amp;multilift=false&amp;zepro=false&amp;installation=false&amp;mobileservice=false&amp;service=false&amp;spareparts=false&amp;training=false&amp;warranties=false&amp;forestryCranes=false&amp;hookliftsAndSkiploaders=false&amp;loaderCranes=false&amp;recyclingCranes=false&amp;tailLifts=false&amp;truckMountedForklifts=false&amp;dealers=true&amp;services=false">local dealer</a> or <a href="/en-us/dealerservice-point-map?zoom=10&amp;effer=false&amp;hiab=false&amp;jonsered=false&amp;loglift=false&amp;moffett=false&amp;multilift=false&amp;zepro=false&amp;installation=false&amp;mobileservice=false&amp;service=false&amp;spareparts=false&amp;training=false&amp;warranties=false&amp;forestryCranes=false&amp;hookliftsAndSkiploaders=false&amp;loaderCranes=false&amp;recyclingCranes=false&amp;tailLifts=false&amp;truckMountedForklifts=false&amp;dealers=false&amp;services=true">Service Point</a> or use our Contact Form by clicking on "Contact Us"</li>
</ul>

HIAB

Knuckle boom cranes

LOGLIFT

Material handler Loaders

MOFFETT

MULTILIFT

GALFAB

Hooklifts, Skiploaders & Hoists

User-agent: *
Disallow: */Settings
Disallow: */~/link/
Disallow: /*.dat$
Disallow: /*.aspx$
Disallow: */sandbox/*
Disallow: /en/en-au/*
Disallow: /en/en-au
Disallow: /en/en-AU
Disallow: beta.hiab.com

<p>If you are looking to purchase spare parts, please go to our webshop or click on the "Find a dealer" button to find a dealer closest to you.</p>

Change location

WALTCO MDL/HP Series

Tail Lifts

Downloads

Standard & Optional features

Model specifications

Find your local HIAB & MOFFET Sales Representative

HIAB or MOFFETT Service Center

Find a WALTCO Dealer or WALTCO Service Center

Find a MULTILIFT Dealer or MULTILIFT Service Center

Contacts

1. MDL/HP-16	1. MDL/HP-20	1. MDL/HP-30	2. MDL/HP-16	2. MDL/HP-20	2. MDL/HP-30
Alu	Alu	Alu	Alu	Alu	Alu
48	48	48	54	54	54
89	89	89	89	89	89
1600	2000	3000	1600	2000	3000
56	56	56	56	56	56
40	40	40	40	40	40


Platform Types
Platform Length Max (in)
Platform Width Max (in)
Lifting Capacity (lb)
Bed Height Max (in)
Bed Height Min (in)
