WALTCO MDL Series

Tail Lifts

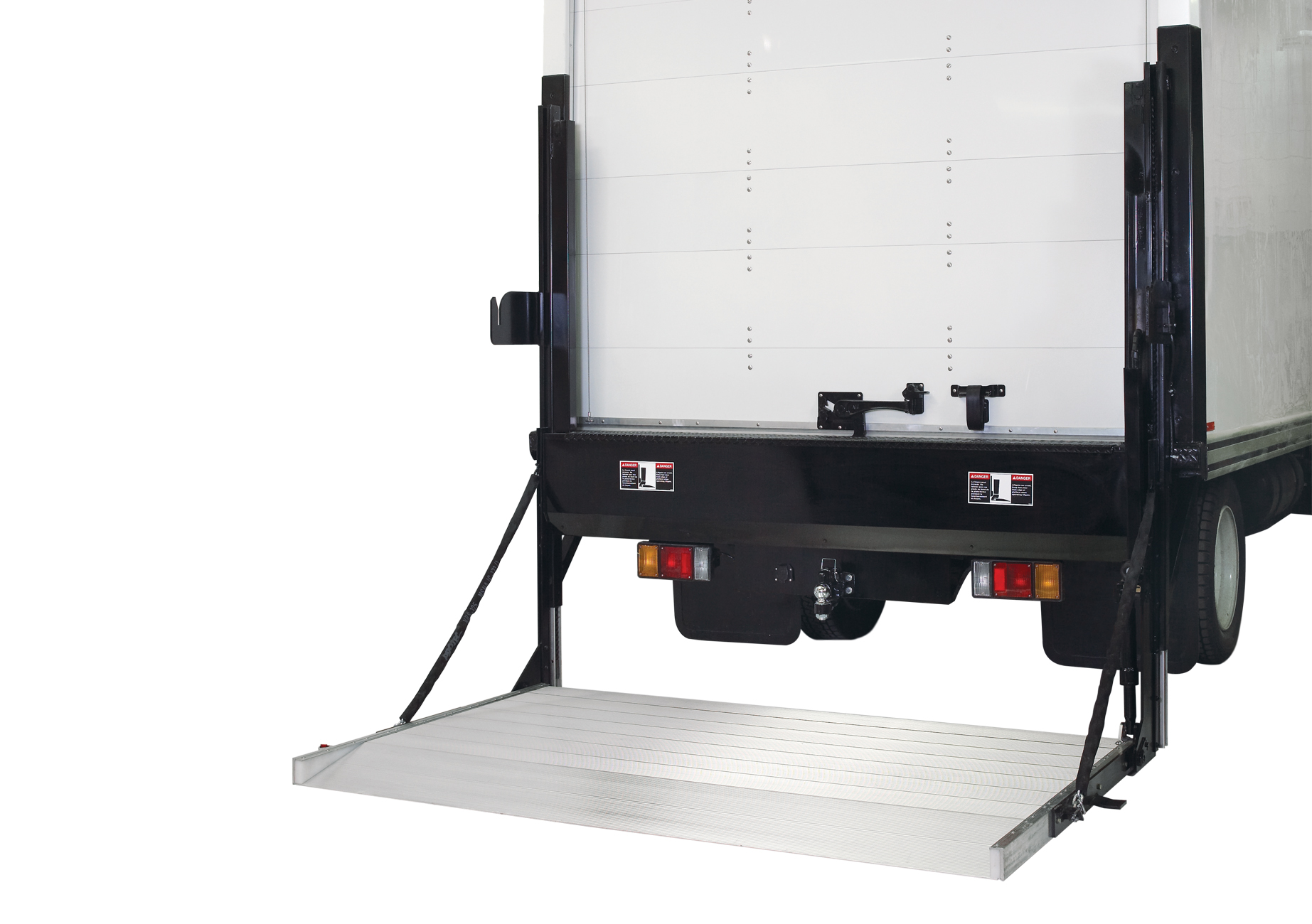

A level-ride platform railgate designed for easy handling of wheeled carts, bins and racks. Available in 1,250 lb. and 1,600 lb. lifting capacities.

Find dealer

Downloads
Features
Specifications

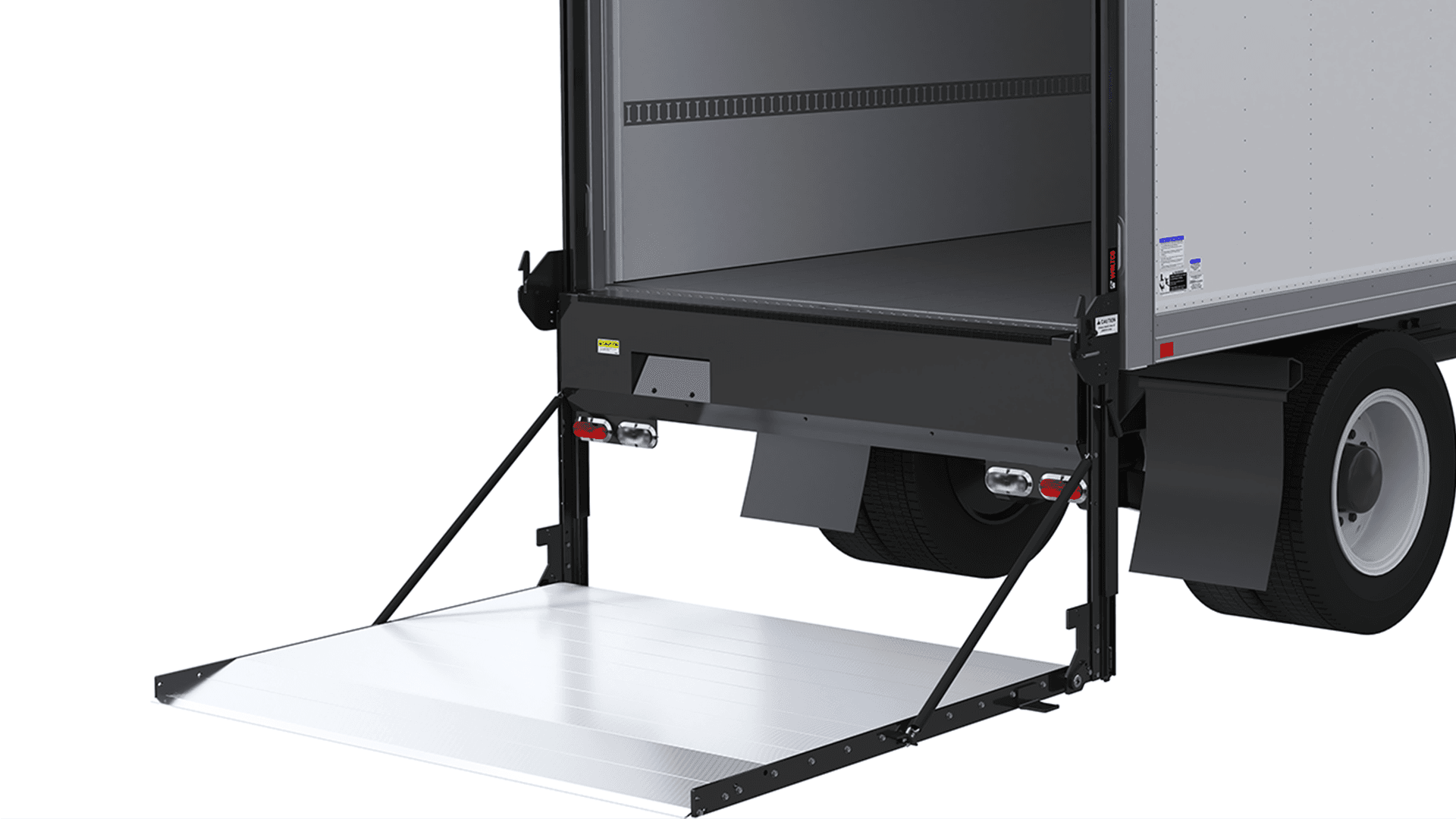

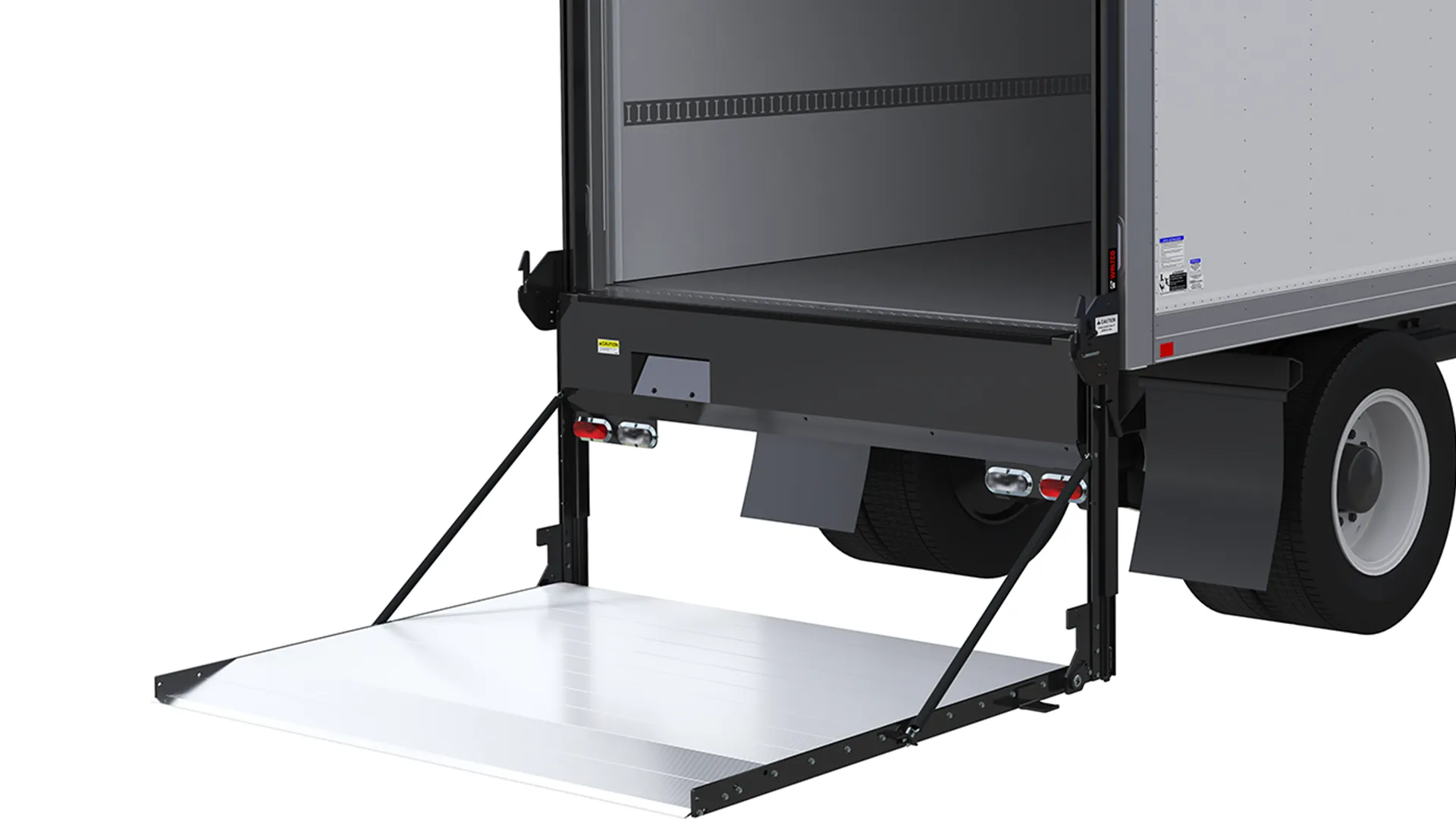

Railgates have vertical tracks that weld to the rear frame of a pick-up truck, service body, stake body, truck body or trailer. The platform travels in these tracks via cables or chains in conjunction with a hydraulic cylinder, or the use of two hydraulic cylinders directly attached to the platform. In the travel position, the platform stores over the rear door.

Downloads

MDL-Series Brochure

MDL/MDLBG/DS/DT/SB Owner's Manual MDL/MDLBG/DS/DT/SB Install Manual MDL/MDLBG/DS/DT/SB Parts Manual

Standard & Optional features

Model specifications

MDL-12	MDL-16	MDL-20	MDL-30	MDL/AP-12	MDL/AP-16	MDL/AP-20	MDL/AP-30
Steel	Steel	Steel	Steel	Alu	Alu	Alu	Alu
36	36	42	48	36	60	60	48
89	89	89	89	89	89	89	89
1250	1600	2000	3000	1250	1600	2000	3000
46	56	56	56	46	56	56	56
30	30	30	30	30	30	30	30

Cookies on Hiab.com

Change location

WALTCO MDL Series

Tail Lifts

Downloads

Standard & Optional features

Model specifications

Find your local HIAB & MOFFET Sales Representative

HIAB or MOFFETT Service Center

Find a WALTCO Dealer or WALTCO Service Center

Find a MULTILIFT Dealer or MULTILIFT Service Center


Platform Types
Platform Length Max (in)
Platform Width Max. (in)
Lifting Capacity (Lbs)
Bed Height Max (In)
Bed Height Min (In)
