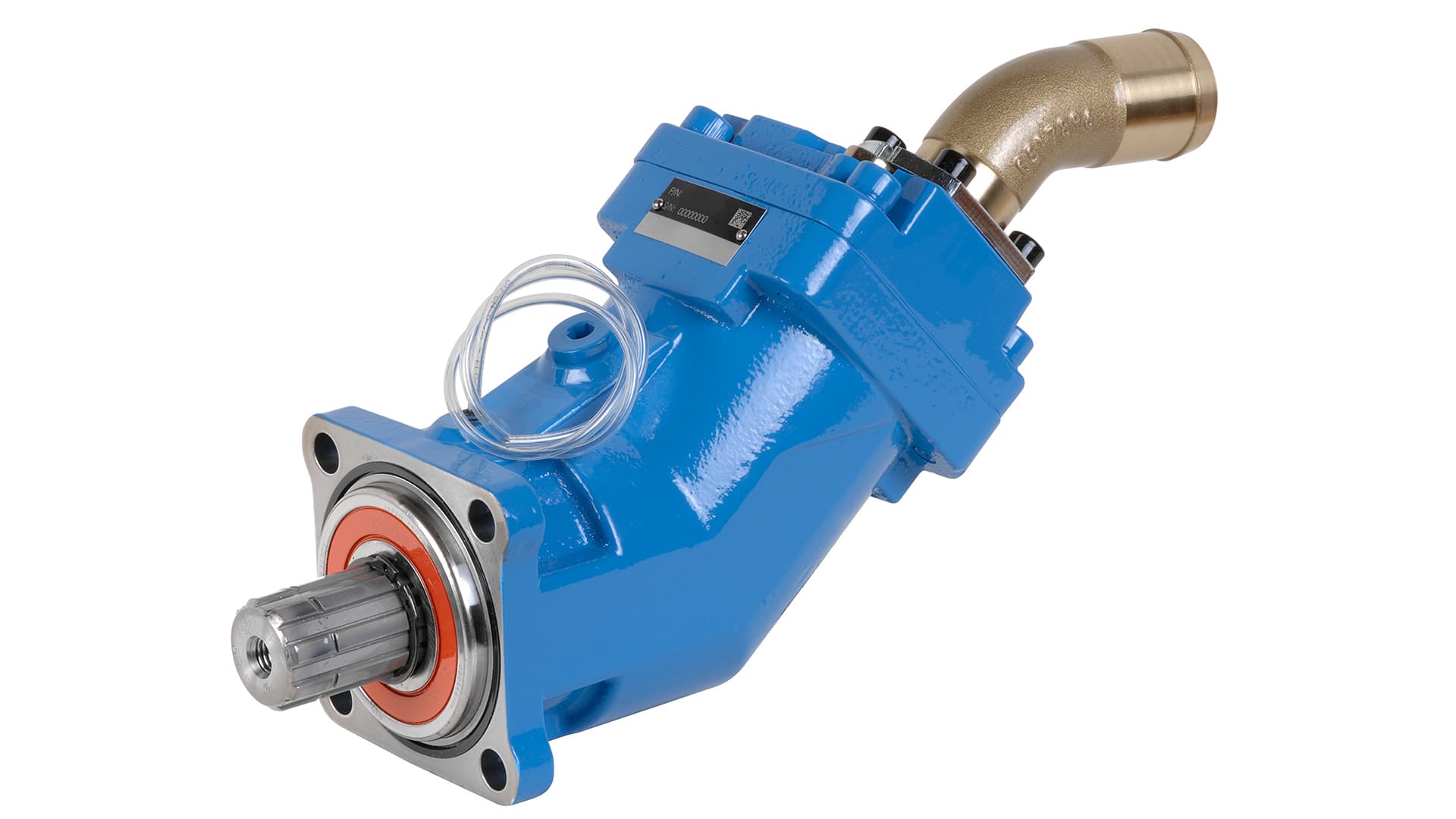

FIXED PUMP XPi
Hiab XPi pumps are specially designed to meet the needs of truck equipment. Their compact design allows a direct flange-mounting on the PTO
Find dealerAll models are of 7 piston design to ensure optimal flow regularity, and can withstand continuous working pressures up to 380 bar and 420 bar peak. The pumps require no user intervention to change the direction of rotation (simple switching of the inlet fitting).
Model specifications
Hydraulic Pumps |
|---|
| Displacement 1 |
| Height (mm) |
| Length (mm) |
| Weight (Kg) |
| Width (mm) |
| Max Oil Pressure (MPa) |
| XPi - 12 | XPi- 18 | XPi - 25 | XPi - 32 | XPi - 41 | XPi - 50 | XPi - 63 | XPi - 80 |
|---|---|---|---|---|---|---|---|
| 12 | 18 | 25 | 32 | 41 | 50.3 | 63 | 80.4 |
| 104 | 104 | 104 | 109 | 109 | 119 | 119 | 133 |
| 197 | 197 | 197 | 203 | 203 | 214 | 214 | 242 |
| 9 | 9 | 9 | 11 | 11 | 11 | 11 | 15 |
| 108 | 108 | 108 | 108 | 108 | 108 | 108 | 123 |
| 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 |
