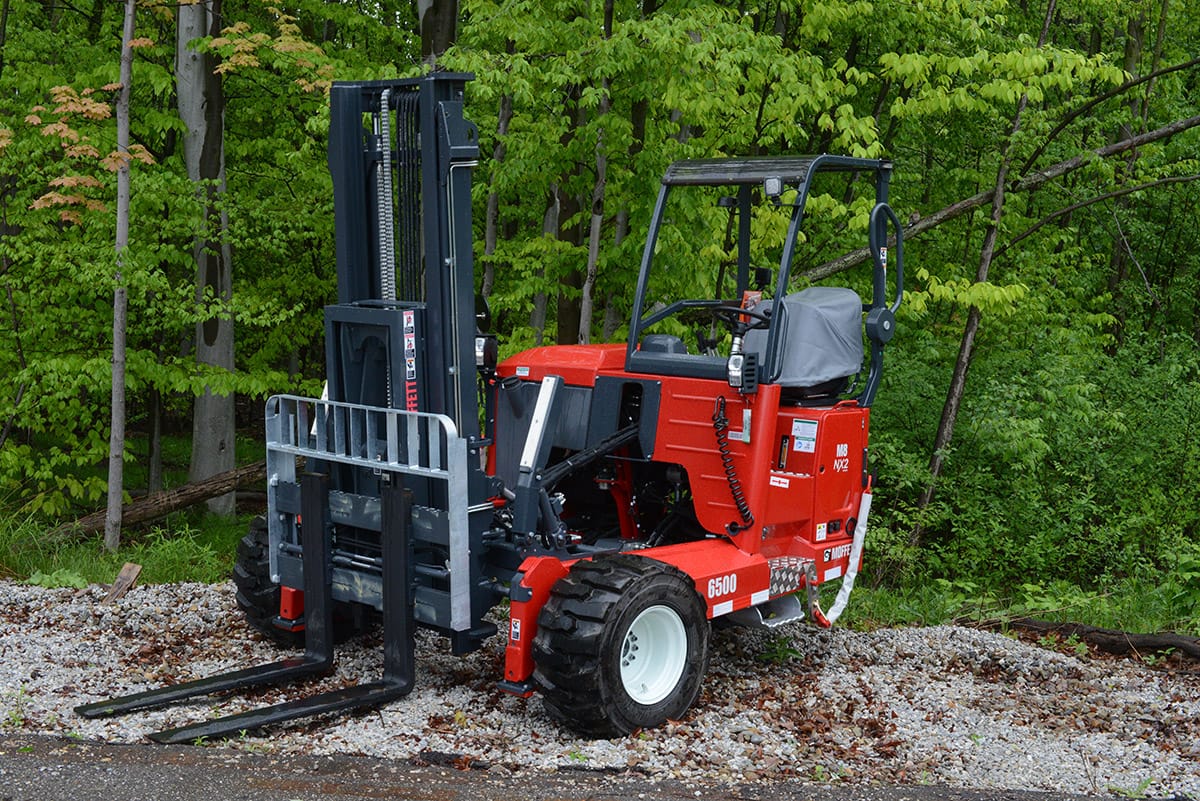

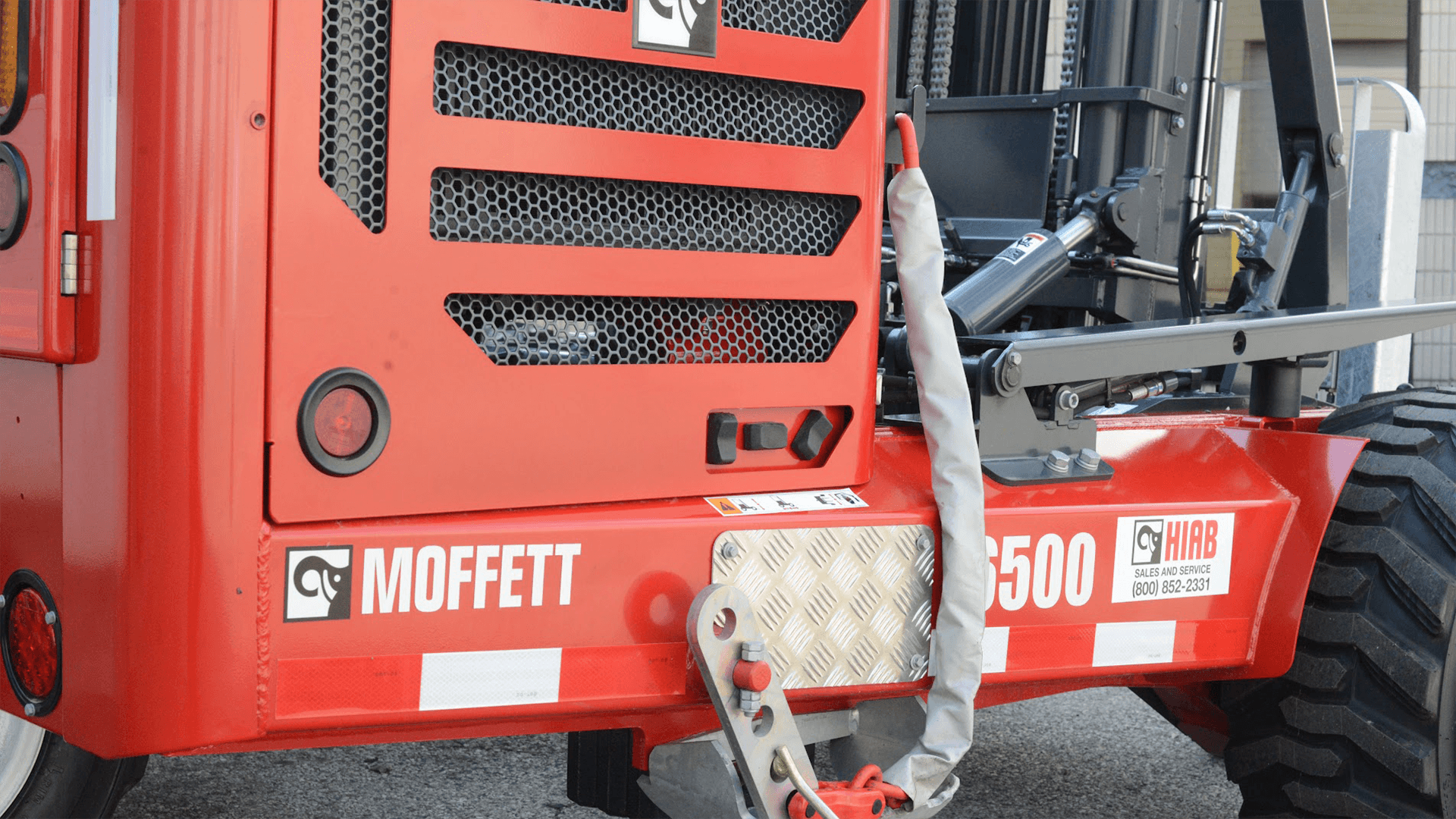

TRUCK MOUNTED FORKLIFT - MOFFETT M8 65.3P NX2 and M8 65.4P NX2
Heavy-duty truck mounted forklift performance for demanding deliveries.
- HIAB United States
- M8 NX2 6500
You asked for it, we delivered. More capacity. More flexibility. More productivity.
Customers requiring a truck mounted forklift with more than 5500 lbs capacity* and the ability to handle loads on the far side of the delivery vehicle now have two new options - the M8 65.3P NX2 and M8 65.4P NX2. The MOFFETT M8 NX2 sets new standards in truck mounted forklifts, and with “near side” capacity increased to 6500 lbs, these latest models give operators the increased capacity to handle even heavier loads without sacrificing the ability to single side offload.
*Refer to the load capacity chart on your machine.
Maximize productivity and keep operators safe
With its increased 6500 lbs capacity, the MOFFETT M8 65.3P NX2 and M8 65.4P NX2 deliver class-leading performance by handling heavy loads on any terrain – reducing downtime, lowering your total cost of ownership, and ensuring comfortable, stress-free operation. This higher capacity, combined with the compact design, outstanding maneuverability, and innovative single-side offloading, enables more deliveries and faster turnaround.
Features that set new standards
Discover how the MOFFETT M8 65.3P NX2 and M8 65.4P NX2 save time, reduce costs, and improve safety.

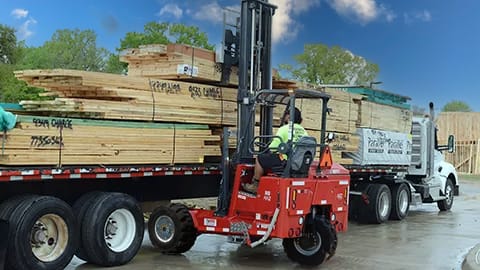

Single-side offloading
Thanks to the new, low-profile pantograph in combination with the patented Lift Assist System™, operators can handle all loading and unloading from one side of the machine. This eliminates the need for time-consuming truck repositioning, making every job smoother and faster.
Ground Assist
Ground Assist functions enhance safety when mounting or dismounting the forklift, reducing the need for operators to climb at heights. SideMount+ ensures easy side access for added convenience, keeping the driver on the curb side for safer operation.

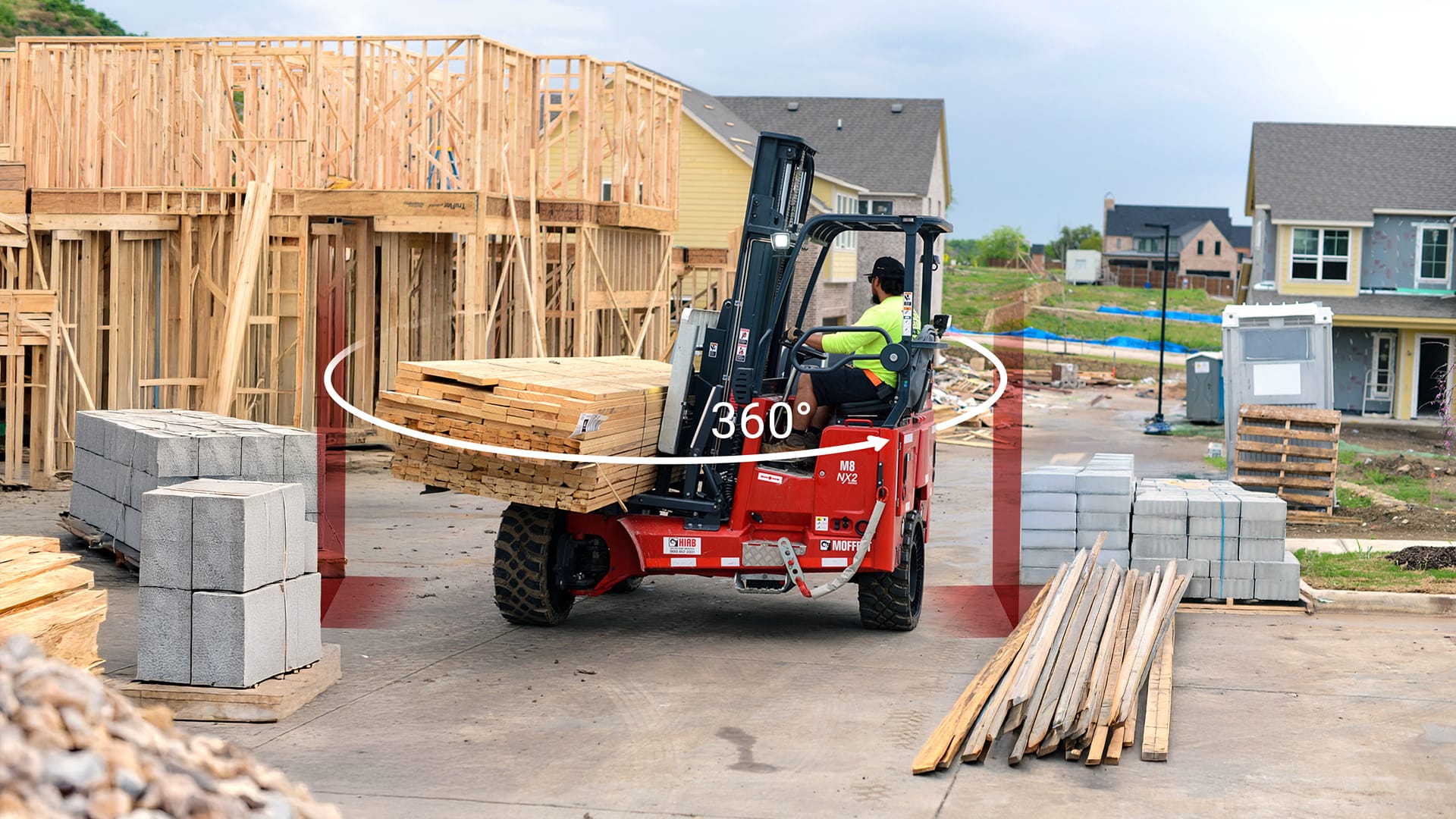

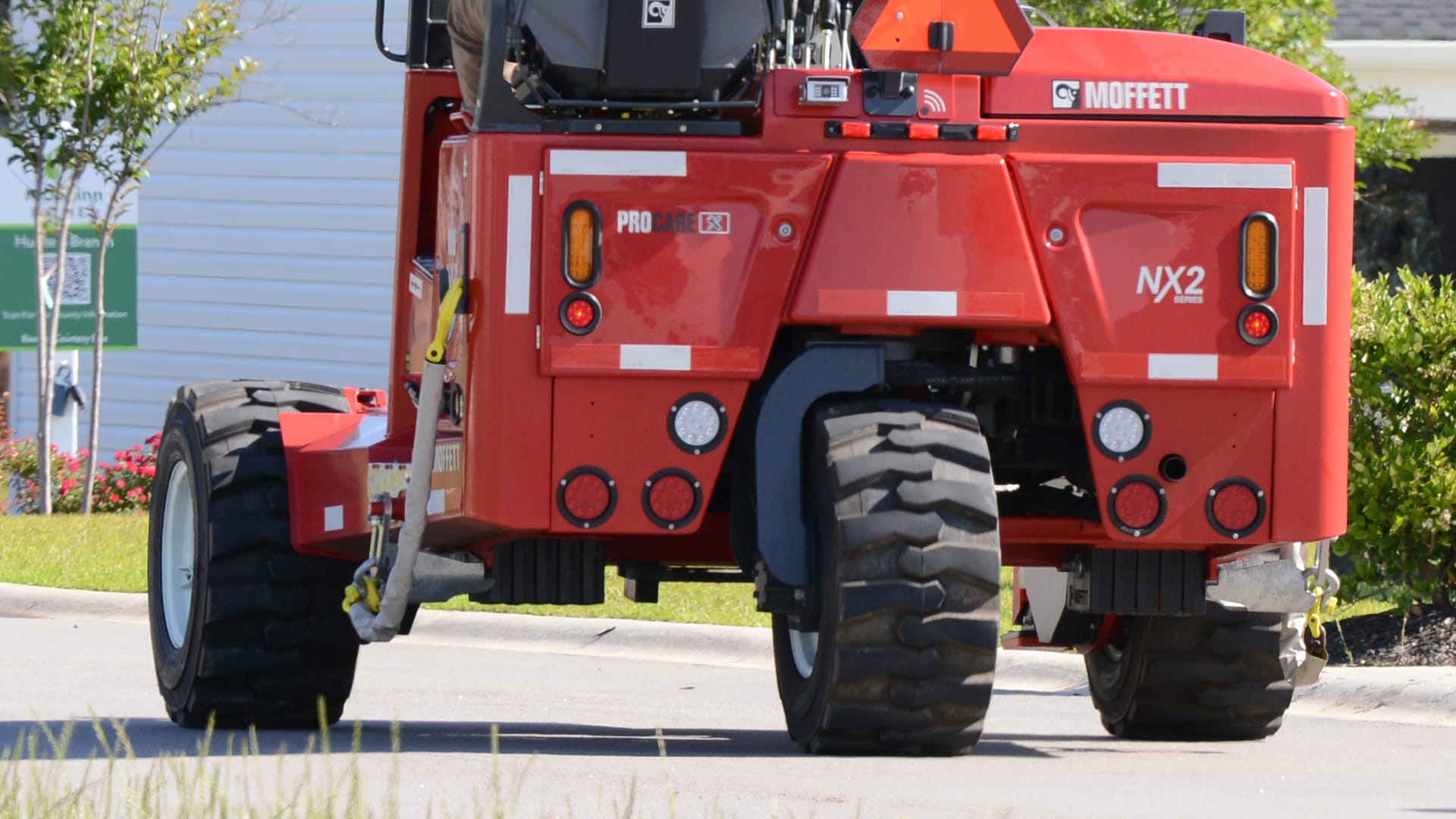

4-way steering
With the 4-way steering option, all wheels can be rotated independently for lateral movement, allowing for precise maneuvering of wide loads or in tight spaces. The increased rear steering angle adds an extra 30° of rotation, to minimize overhang and increase maneuverability.

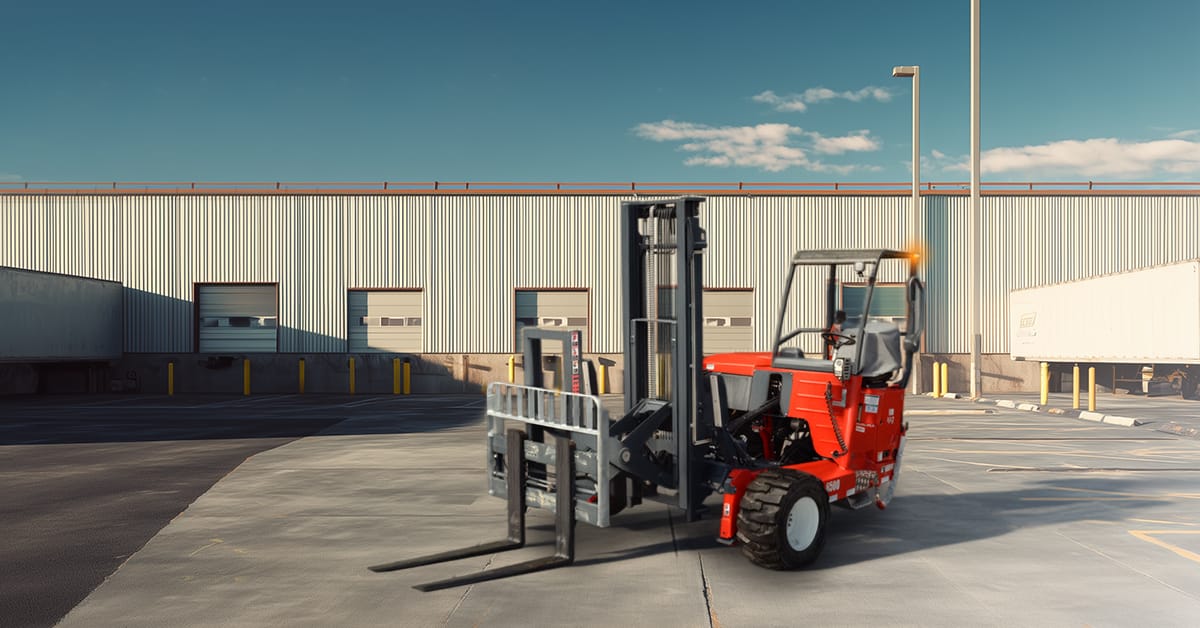

MaxPerformance™
With an exceptional power-to-weight ratio, the MOFFETT M8 65.3P NX2 and M8 65.4P NX2 have a lightweight design for better agility and increased payload capacity, while giving you the power to handle more in every load.
Technical specifications
With their increased capacity, the M8 65.3P NX2 and M8 65.4P NX2 models handle heavier loads, and offer:

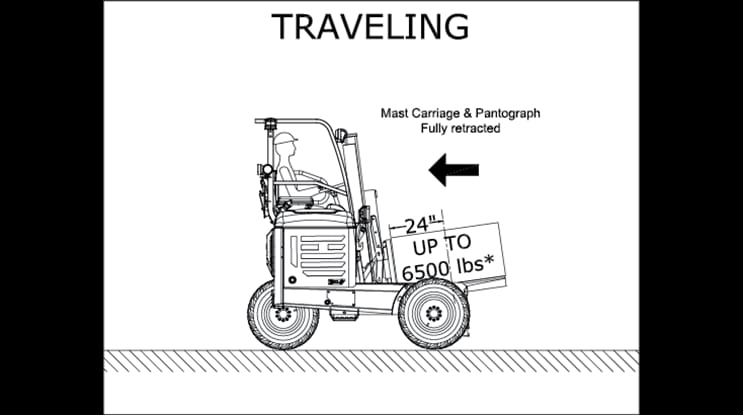

• Lifting capacity (refer to the load chart):

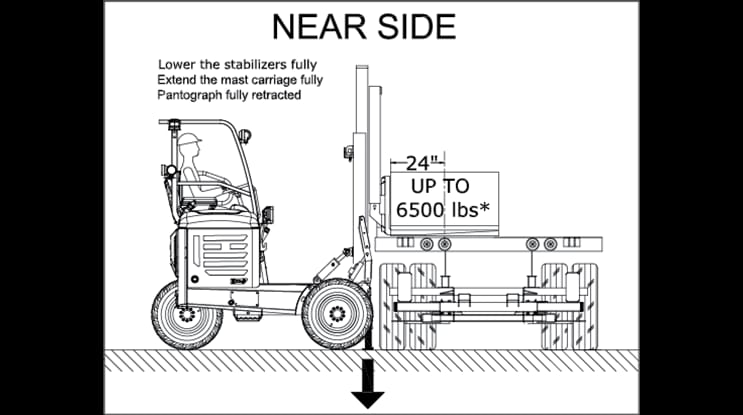

Near Side: 6500 lbs @ 24" LC

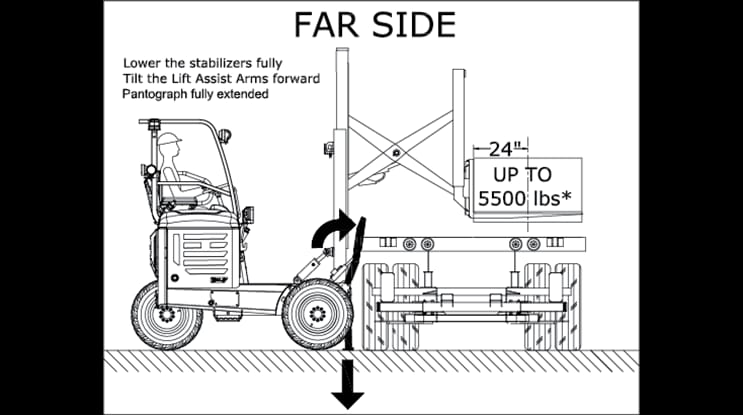

Far Side: 5500 lbs @ 24" LC
• Standard lifting height: 10', 12' Optional
• Overhang: 70" Minimum
• Ground clearance: 12"
