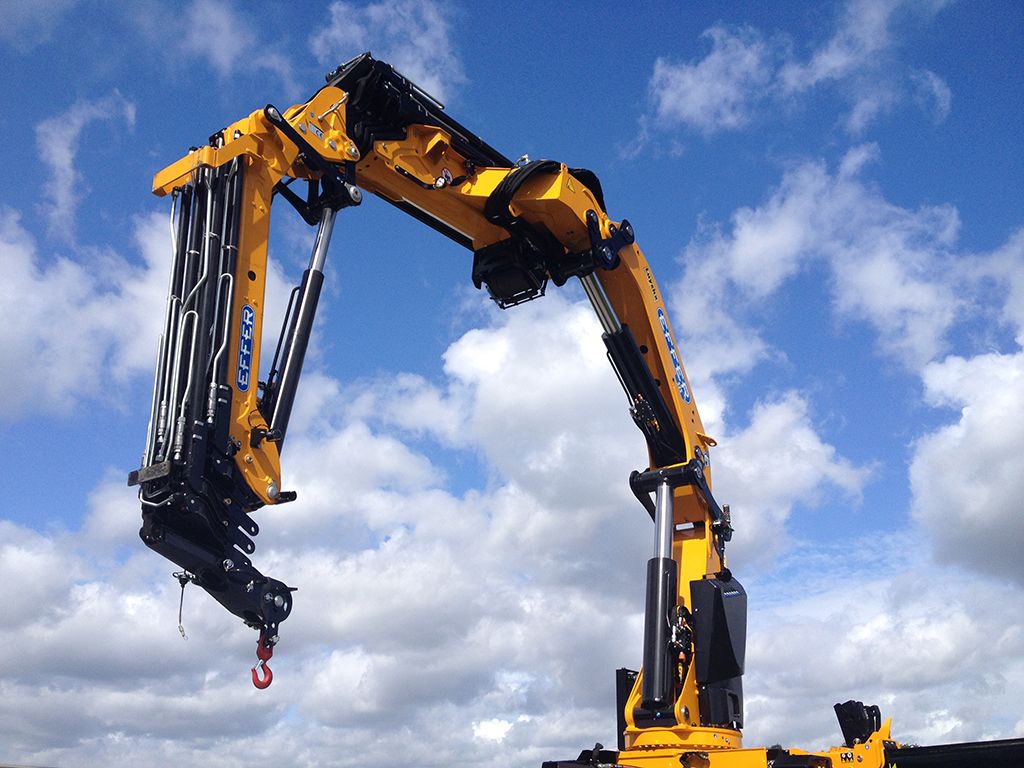

EFFER 525

Loader Cranes

Remote controlled loader crane.
CE marked.

xx Tm range capacity loader crane.
The 525 crane may be considered the ultimate expression of the lifting moment/weight ratio in the whole category. The use of materials with very high structural strength, the electronics, the advanced design systems and the possibility to use powerful and light joints, allow the crane to achieve the dual concept of lifting capacity and operating speed. The introduction of the Progress electronic system has also made it possible to reach the highest safety standards.

The model 525 has been successfully installed on crawler too, to operate on rough terrain and in places not accessible by trucks, such as the interior of some buildings.

Downloads

Especificaciones del modelo

Alcance de extensión hidráulica (M)
Capacidad de elevación (kNm)
Peso (Kg)
Maximum working slope
Max. oil delivery
Oil tank capacity
EFFER 525 4SEFFER 525 5SEFFER 525 6SEFFER 525 7SEFFER 525 8S
12.514.71719.321.7
460453446440433
50755265547056705880
8.78.78.78.78.7
100100100100100
200200200200200

Diagramas de carga

Haga clic para encontrar el diagrama de carga adecuado para usted

EFFER 525 4S
EFFER 525 5S JIB 6S
EFFER 525 6S JIB 3S HEAVY DUTY
EFFER 525 5S
EFFER 525 6S
EFFER 525 5S JIB 4S
EFFER 7S
EFFER 525 5S JIB 3S
EFFER 525 8S
EFFR 525 6S JIB 6S HEAVY DUTY
Loading PDF…

Product dimension

Click to find the product dimension

EFFER 525 Dimension 1
EFFER 525 Dimension 2
