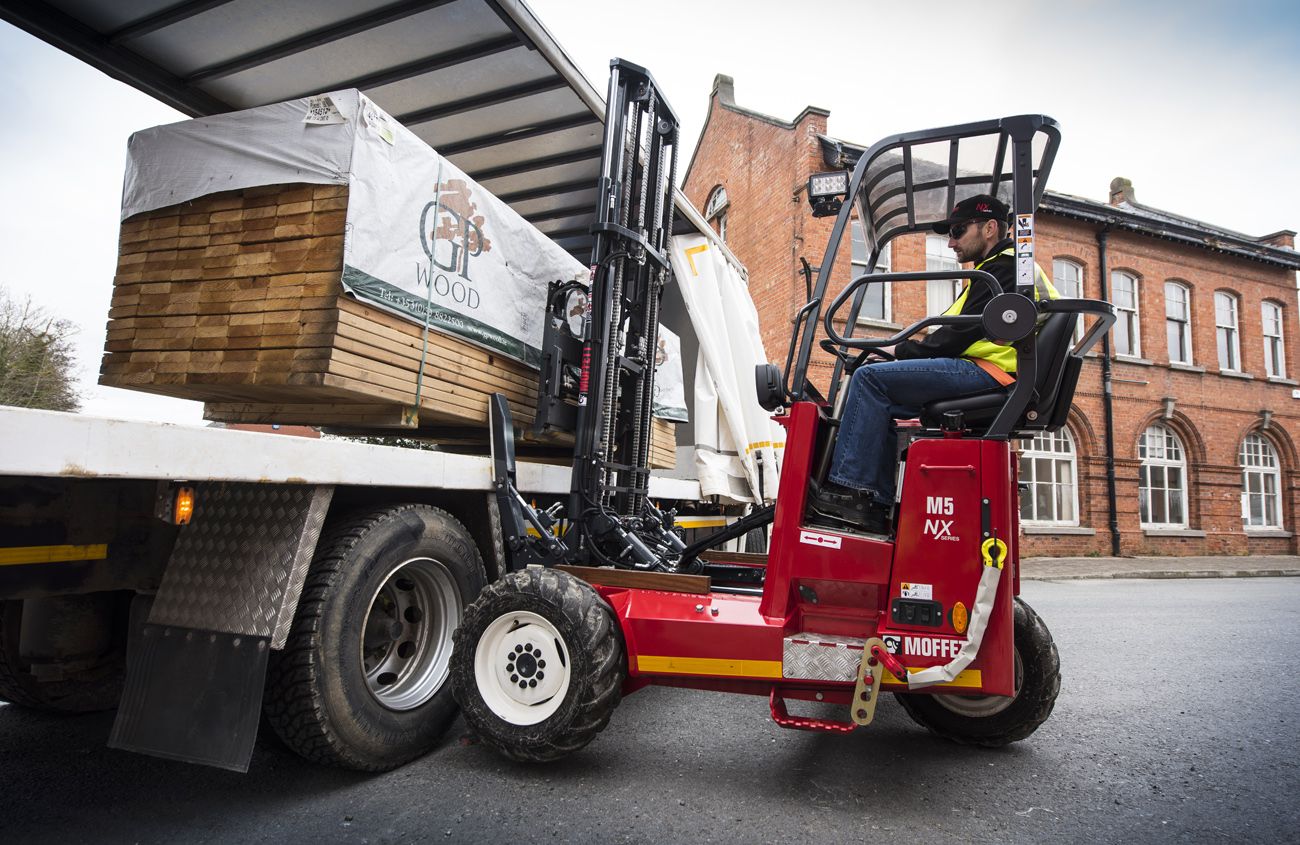

MOFFETT M5 NX

Truck Mounted Forklifts

The moving mast model for lift capacities up to 2500 kg.
Find dealer
The MOFFETT M5 NX is the specialist for medium- to heavy-duty tasks, with a seriously efficient power-to- weight ratio. Lifting up to 2,500 kg, the M5 NX easily masters both rough terrain and the most confined areas – transferring loads quickly and safely throughout busy yards, warehouse facilities or traffic. Designed for a wide range of industrial and commercial applications, especially for the use on difficult terrain..

Standard & Optional features

Model specifications

Lifting Capacity (Kg)
Weight (Kg)
Weight (Lbs)
Engine Type
Lifting Capacity (Lbs)
Overhang (in)
Overhang (mm)
Lift Height Range (in)
Lift Height Range (mm)
Engine description
Standard tires
Ground clearance
MOFFETT M5 NX 20.3MOFFETT M5 NX 20.4MOFFETT M5 NX 25.3MOFFETT M5 NX 25.4
2000200025002500
2250240023802490
4960529152475490
DieselDieselDieselDiesel
4400440055005500
47.247.247.247.2
1200120012001200
118.1118.1118.1118.1
3000300030003000
Kubota Diesel 26.5 KW (36hp)Kubota Diesel 26.5 KW (36hp)Kubota Diesel 33 KW (44hp)Kubota Diesel 33 KW (44hp)
280x60-15.5280x60-15.5280x60-15.5280x60-15.5
220220220220
