Hiab is the world's leading provider of on-road load handling equipment, intelligent services, smart and connected solutions.

Hiab - We keep everyday life moving

WALTCO HLF Series

PagePreview

Service and Support

Request a quote

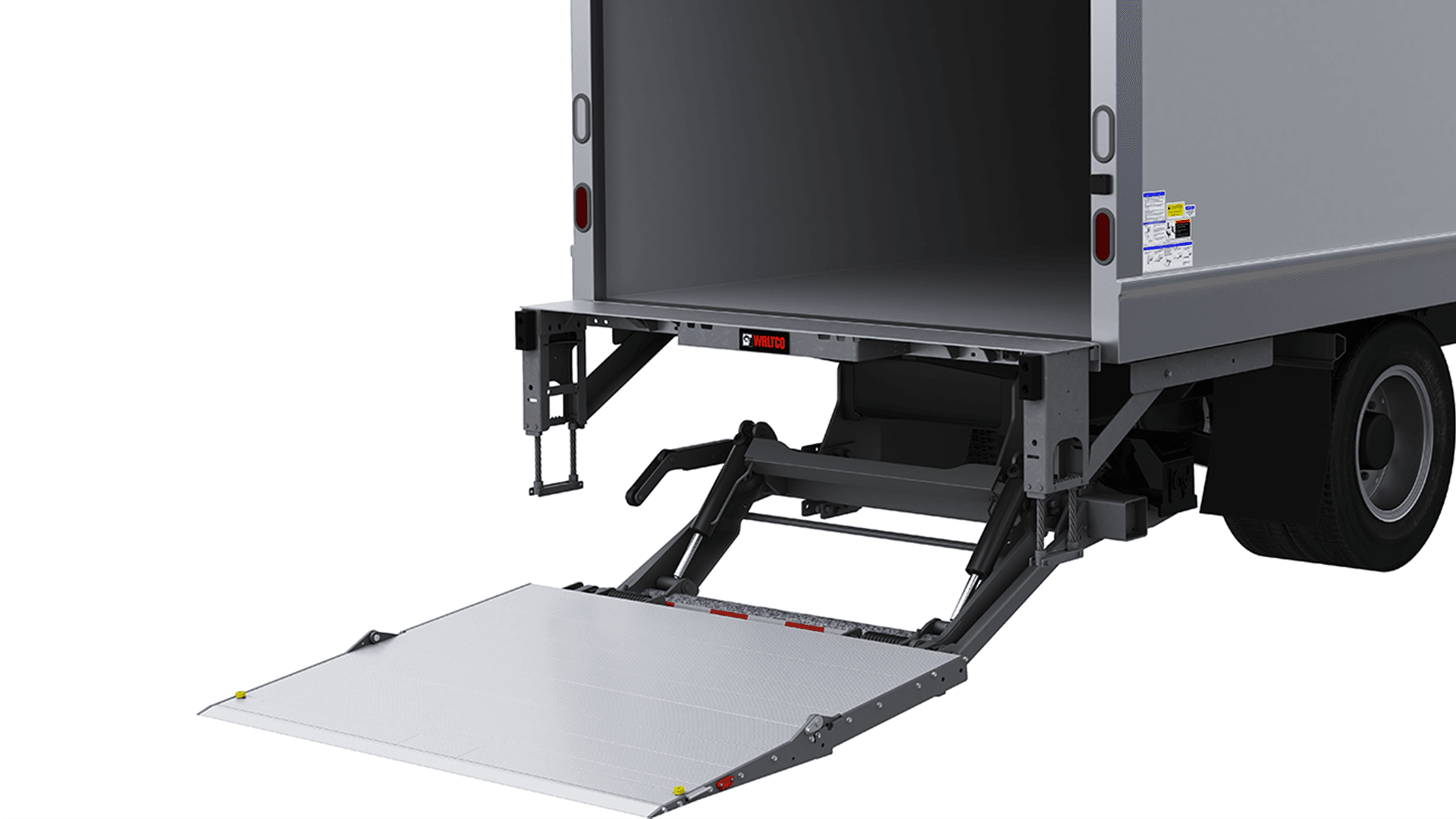

A simplified design that offers maximum convenience, performance and flexibility. The two-section, lightweight loading platform can be folded and stored beneath the truck body floor, enabling easy access to the cargo area without activating the lift. The liftgates are welded to the frame of the vehicle chassis to ensure optimum safety.

Knurled aluminium platform and galvanized mainframe comes as standard.

HLF/AP-25

HLF/AP-30

HLF/AP-40

HLF/AP-50

HLF/APWR-25

HLF/APWR-30

HLF/APWR-40

HLF/APWR-50

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

We offer various bed extension options to accomodate additional needs.

-102" Wide Vehicle modification
-Walk Ramp Compatible bed extension (bolt-on option for galvanized gates)
-Bolt-on bed extension kit

EM & HLF Only:
-Swing door compatible bed extension

HLF Only:
-1/2" Thick bed extension

*WFL only offers the 102" wide option

USP_677158

Bed Extention Options

Heavy Duty (up to 5,000 lb. capacity) Flipaway Gate features a large knurled platform with individually replaceable extrusions, making the HLF the most popular flipaway choice.

USP_883622

Heavy Duty Flipaway (up to 6,600 lb. capacity)

In the world today, options are a necessity. That holds very true when it comes to operating your liftgate. WALTCO offers many convenient options to allow you to control your liftgate safely.

Dual Controls - conveniently allow liftgate operation from the side of the vehicle or from another location. This is convenient and safe for single driver deliveries, allowing less climbing and more control.

Hand Held Remote Kit - allows a larger viewing area for the operator. The remote cord moves with you to allow more control and visibility of your work space.

Cab-Mounted Shut-off Safety Switch - this swich is mounted inside the cab and allows the driver to keep power to the liftgate off while it's not in use. This feature ensures the liftgate will not be available for unauthorized use.

USP_677135

Additional Control Options

"Standard Galvanization to all liftgate components to eliminate rust and prolong the life of your liftgate.
*Platform in knurled aluminum*"

USP_883660

Standard Galvanization

Standard bolt-on 3/8" thick bed extension, bolt on 2 step dock bumpers with UHMW pads, and Reduced Maintenance Features make installation quick and easy.

USP_883662

Easy-Install Features

USP_882307

Bed Heights 46" - 60"

WALTCO offers many additional options for various dock bumper requests. Some available options for our Flipaway dock bumpers include:

Steps
-Steel steps (one or two)
-Wire rope step

Lighting options
-no lights
-prepped for lights
-red/white lighs
-red/red lights

*Rubber Bumper Pad Kit for C-Series

Talk to your WALTCO representative for specific requests.

USP_677160

Dock Bumper Options

Standard power down feature keeps your gate running faster. Hydraulic cylinders are retracted and protected in the transit position to keep them safe from road debris.

USP_883661

Safe and Fast

We offer additional power options for our Flipaway liftgates.

Power Down Option - for our Flipaways that come standard with gravity down, we offer the option of power down.

Tracter Wiring Kits - we offer wiring kits for your tractor
Trailer Wiring Kit - single and dual pole kits and chargers for various setups

Cables:
 - higher amperage cables available (200 amps)
 - longer 50' cable available (150 and 200 amps)


USP_677162

Power Options
Flipaway

Film_677077

WALTCO HLF Flip-Away Gate

Film_1114410

WALTCO HLF Operator Video

Hiab Corporate

English

Australia

Austria

Deutsch

Belgium

Dutch

Française

Brazil

Português

China

中文

Czech Republic

Čeština

Denmark

Dansk

Finland

Suomi

France

Germany

India

Italy

Italiano

Japan

日本語

Latin America

Español

Netherlands

Norway

Norsk

Poland

Polski

Singapore

Spain

Sweden

Svenska

Ukraine

Yкраїнська

United Kingdom

United States

BrandsLink

General inquiry

Hiab webshop

en-GB

en-AU

en-IN

fr-FR

cs-CZ

en-SG

en-CA

fr-CA

Footer Block

<h3><a title="Find a dealer" href="/en/dealer-service-point-map?dealers=true&amp;services=false">Find your nearest dealer</a></h3>
<h3><a title="Find a service point" href="/en/dealer-service-point-map?dealers=false&amp;services=true">Find your nearest service point</a></h3>

Would you like to go to your local market's website?

Hiab locator

Contact Us

Products

About loader cranes

Brands

Highlights

Industry and Application

Service and Warranty

HiConnect

Accessories

Original spare parts

<p>Presenting the new 110tm loader crane from HIAB.</p>

HIAB iQ.1188 HIPRO

Loader cranes

Brand

About forestry cranes

Industry and Applications

Service & Warranty

HiVision

HiVision for forestry cranes

Forestry cranes

About recycling cranes

<p><span style="font-weight: 400;">Covers the parts you expect, and more</span></p>

JONSERED  warranty

Recycling cranes

About Hooklifts, Skiploaders & Hoists

Hooklifts, Skiploaders & Hoists

About truck mounted forklifts

Electric truck mounted forklifts

Diesel truck mounted forklifts

Features and Functions

MOFFETT eSeries NX

Truck Mounted Forklifts

Industry and Segments

WALTCO

ZEPRO

Original Parts and Service

INTRODUCING THE LATEST FROM WALTCO

Tail lifts

Tools

Mounted

Configure your T-body

Frameworks

Contact forms

General inquiries

Find contact

Hiab corporate

Locate a dealer

Locate dealers

Locate a service point

Contact us

Services

Spare parts

Installations

Parts and Services

Digital solutions

Segments

Webshop

About Us

Sustainability

Careers

Media

Club shop

HiConnect portal

Settings

Find a dealer

HIAB

EFFER

Loader Cranes

LOGLIFT

JONSERED

Forestry Cranes

Recycling Cranes

MOFFETT

MULTILIFT

User-agent: *
Disallow: */Settings
Disallow: */~/link/
Disallow: /*.dat$
Disallow: /*.aspx$
Disallow: */sandbox/*
Disallow: /en/en-au/*
Disallow: /en/en-au
Disallow: /en/en-AU
Disallow: beta.hiab.com

<p>If you are<strong class="Typographystyle__BodyStrong-sc-12p52d0-6 gWPfrO">&nbsp;not a dealer</strong> and are looking to purchase <em>spare parts or accessories</em>, please click on the "Find a dealer" button</p>

The webshop is for dealers only

Change location

WALTCO HLF Series

Tail Lifts

Downloads

Standard & Optional features

Model specifications

Videos

WALTCO HLF Flip-Away Gate

WALTCO HLF Operator Video

Find your nearest dealer

Find your nearest service point

Contacts

HLF/AP-25	HLF/AP-30	HLF/AP-40	HLF/AP-50	HLF/APWR-25	HLF/APWR-30	HLF/APWR-40	HLF/APWR-50
Alu	Alu	Alu	Alu	Alu	Alu	Alu	Alu
60
84
2500	3000	4000	5000	2500	3000	4000	5000
60	60	60	60	60	60	60	60
46	46	46	46	49	49	49	49


Platform Types
Platform Length Max (in)
Platform Width Max. (in)
Lifting Capacity (lb)
Bed Height Max (in)
Bed Height Min (in)
