WALTCO C Series

PagePreview

Service and Support

Request a quote

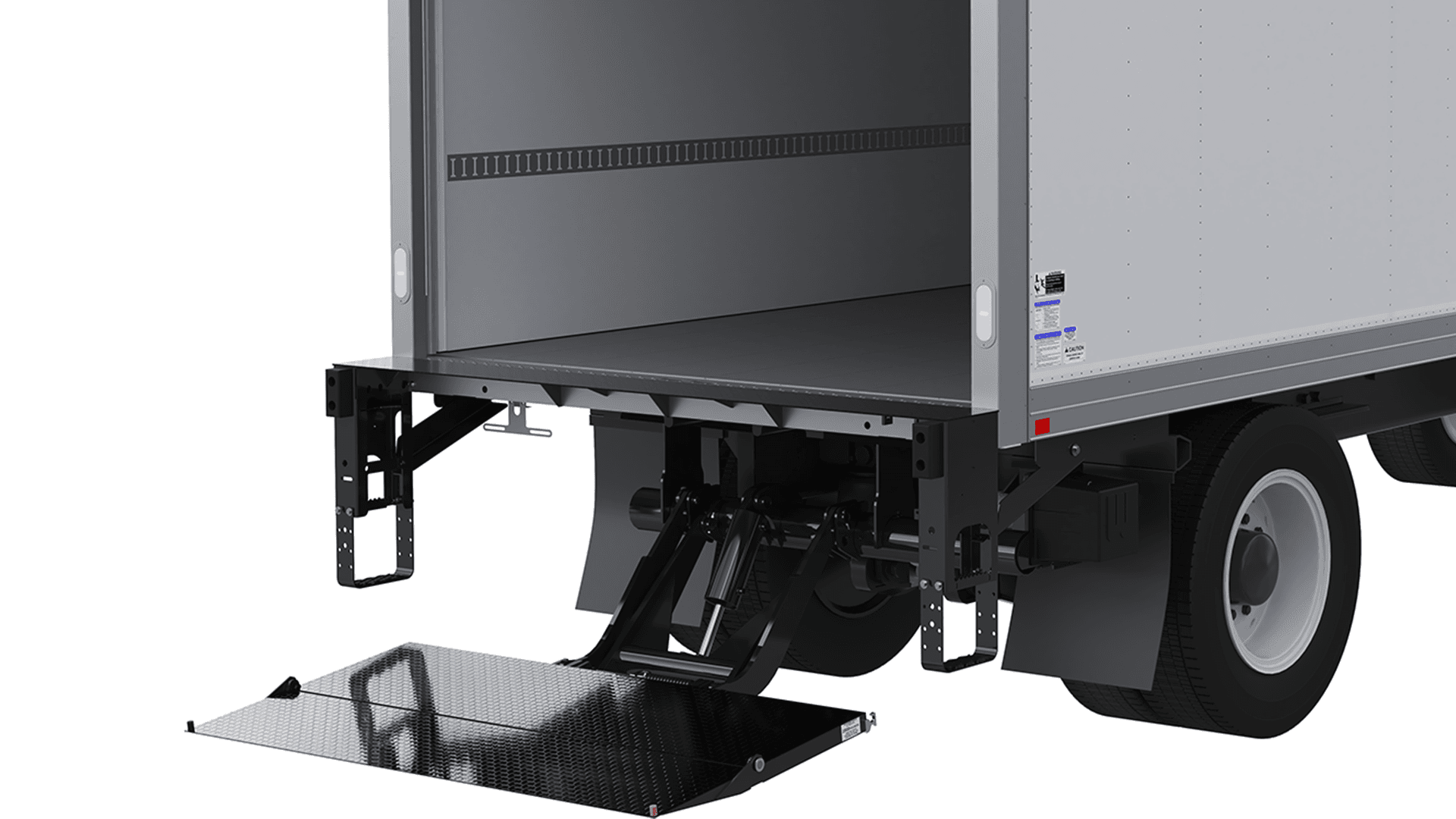

A classic design that offers reduced maintenance features and enables smoother, more efficient deliveries. The loading platform with two folding sections can be stored beneath the body floor, allowing easy access to the cargo area without activating the lift. The flip away liftgate is welded to the frame of the vehicle chassis for optimum safety.

CW-20 SB

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

WALTCO offers the option to galvanize the mainframe of the liftgate. This option extends leadtime by 8 weeks, but increases the overall life of your liftgate. When you galvanize your liftgate, you protect it from rust and harsh weather elements. This is a sound investment for the total life of the liftgate.

USP_677163

Galvanized Mainframe

In the world today, options are a necessity. That holds very true when it comes to operating your liftgate. WALTCO offers many convenient options to allow you to control your liftgate safely.

Dual Controls - conveniently allow liftgate operation from the side of the vehicle or from another location. This is convenient and safe for single driver deliveries, allowing less climbing and more control.

Hand Held Remote Kit - allows a larger viewing area for the operator. The remote cord moves with you to allow more control and visibility of your work space.

Cab-Mounted Shut-off Safety Switch - this swich is mounted inside the cab and allows the driver to keep power to the liftgate off while it's not in use. This feature ensures the liftgate will not be available for unauthorized use.

USP_677135

Additional Control Options

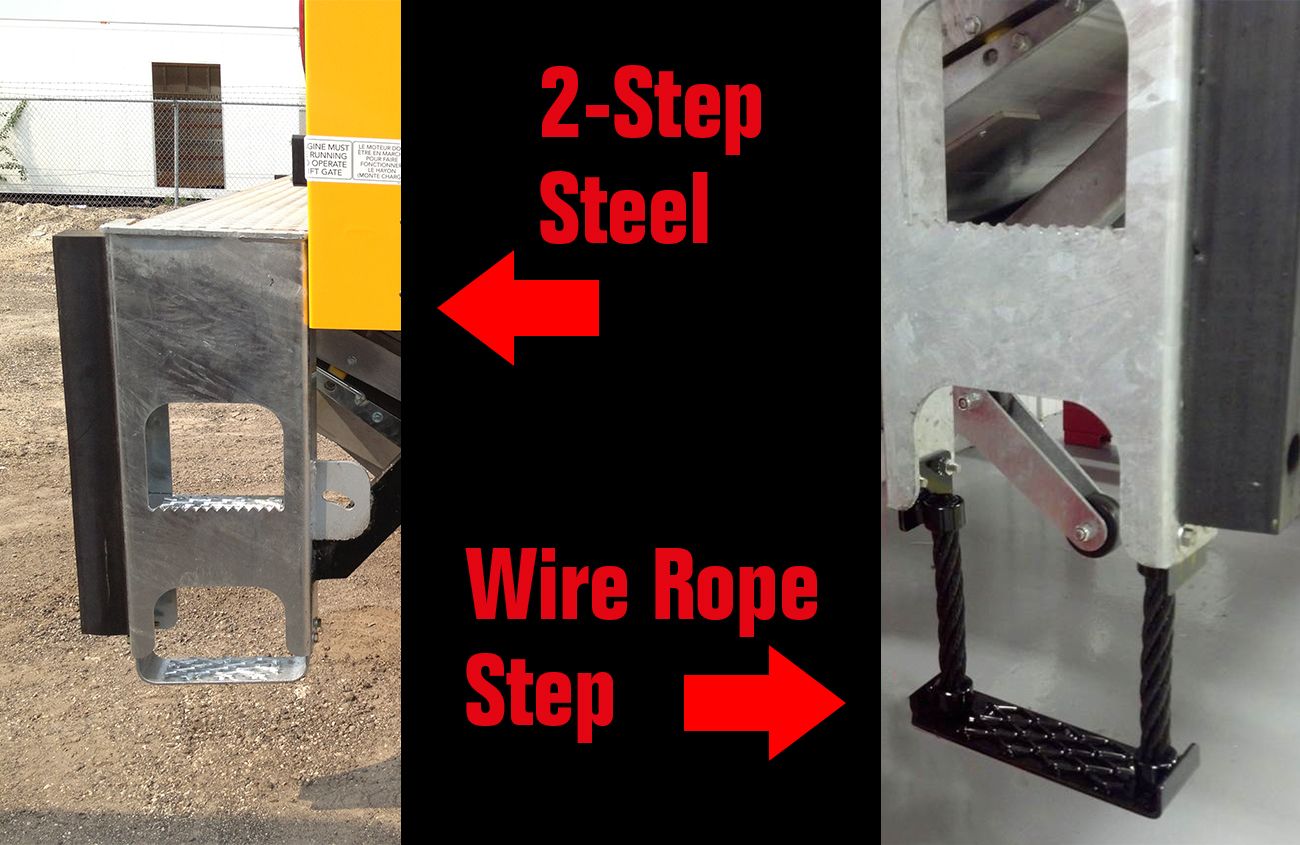

WALTCO offers many additional options for various dock bumper requests. Some available options for our Flipaway dock bumpers include:

Steps
-Steel steps (one or two)
-Wire rope step

Lighting options
-no lights
-prepped for lights
-red/white lighs
-red/red lights

*Rubber Bumper Pad Kit for C-Series

Talk to your WALTCO representative for specific requests.

USP_677160

Dock Bumper Options

The C-Series includes the following features that reduce the maintenance needed on the liftgate and prolong the life of the equipment.

- Closed-loop hydraulic system reduces the potential for fluid contamination
- Powder coat finish with zinc primer on key components produces a high quality finish that is exceptionally resistant to corrosion and abrasion
- Weather-protective power unit enclosure
- All wiring and connections meet or exceed increased TMC recommended guidelines

USP_677165

Reduced C-Series Maintenance Features

Equipped with torsion spring assist to make folding and unfolding the platform simple and smooth.

USP_677167

Easy-Fold

Power up/gravity down hydraulic system means the liftgate saves energy on the way down. Using less energy means your battery lasts longer without needing charged.

USP_677166

Power Up/Gravity Down

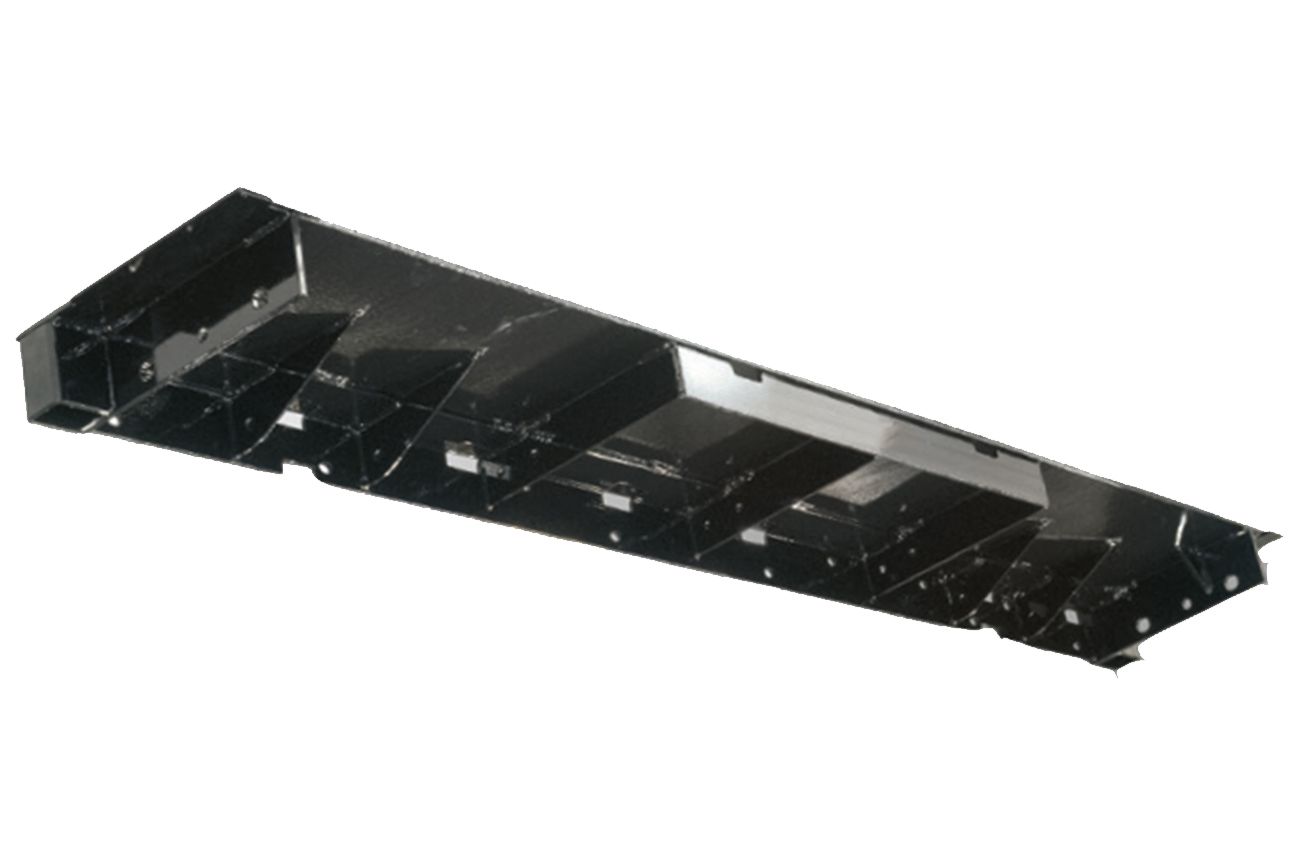

We offer various bed extension options to accomodate additional needs.

-102" Wide Vehicle modification
-Walk Ramp Compatible bed extension (bolt-on option for galvanized gates)
-Bolt-on bed extension kit

EM & HLF Only:
-Swing door compatible bed extension

HLF Only:
-1/2" Thick bed extension

*WFL only offers the 102" wide option

USP_677158

Bed Extention Options

We offer additional power options for our Flipaway liftgates.

Power Down Option - for our Flipaways that come standard with gravity down, we offer the option of power down.

Tracter Wiring Kits - we offer wiring kits for your tractor
Trailer Wiring Kit - single and dual pole kits and chargers for various setups

Cables:
 - higher amperage cables available (200 amps)
 - longer 50' cable available (150 and 200 amps)


USP_677162

Power Options
Flipaway

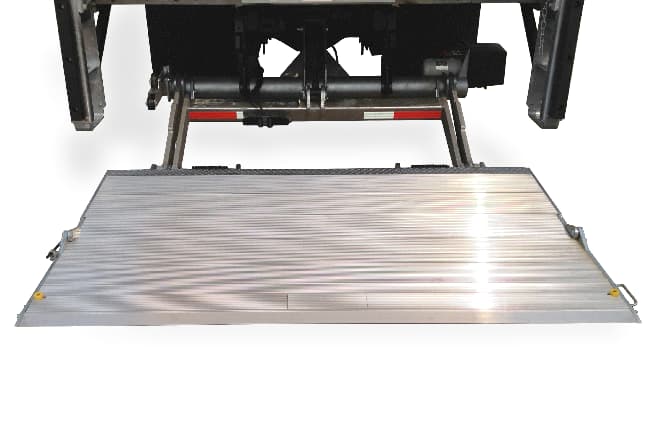

Upgrade to an Aluminum Platform for weight savings and to protect against rust and corrosion.

USP_676801

Aluminum Platform
