Hiab is the world's leading provider of on-road load handling equipment, intelligent services, smart and connected solutions.

Hiab - We keep everyday life moving

JONSERED 1620RZ

PagePreview

Service and Support

Request a quote

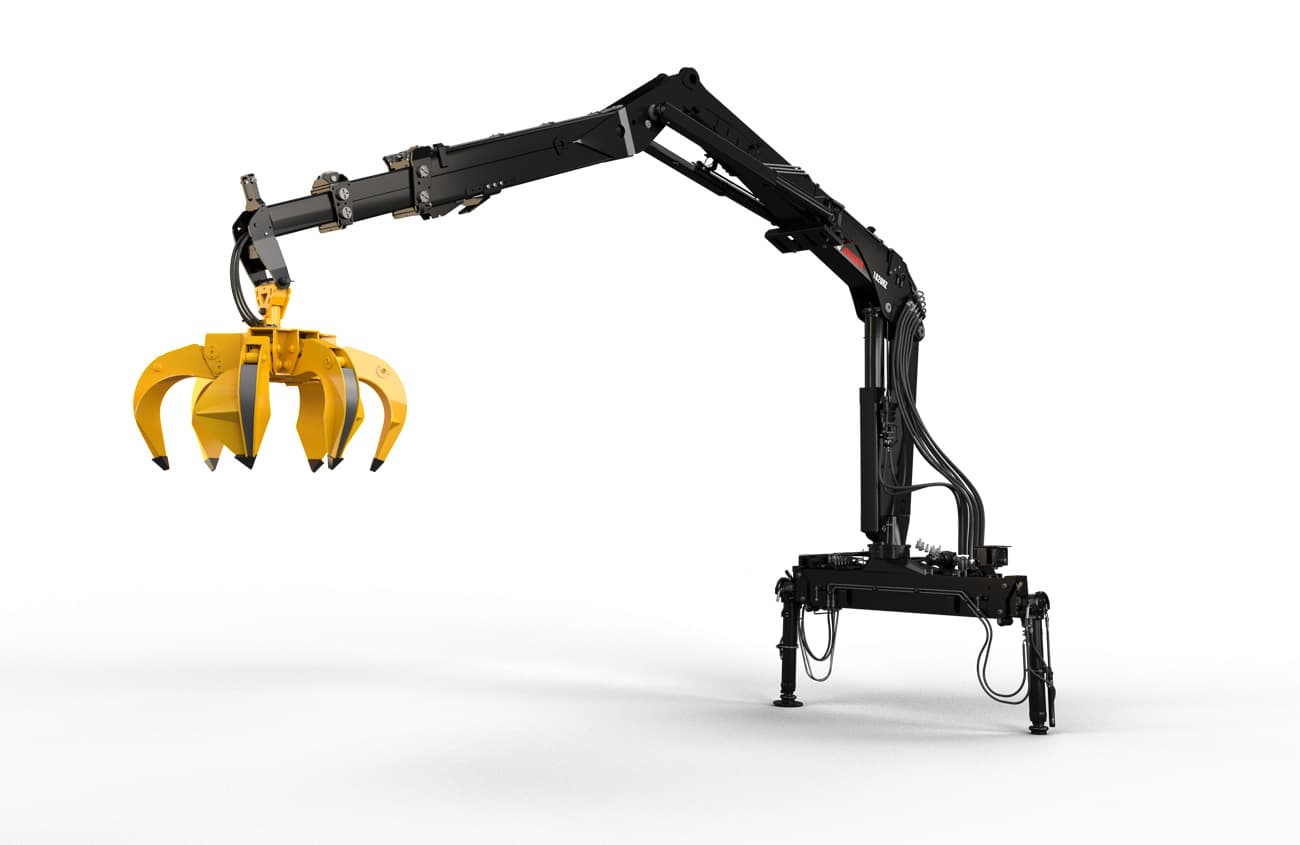

JONSERED 1620RZ is a rugged recycling crane for the heavy applications. 16 tm capacity Z-boom crane and 9,3 meter maximum outreach.


JONSERED 1620RZ | Hiab

JONSERED 1620RZ80

JONSERED 1620RZ93

#/categories/category[@name='productfinderjonsered']/description#

ProductFinderJONSERED

nDurance - Protect your investment
* Uphold long-term performance with effective anti-corrosive protection
* High-Tech paint process based on nano-technology and e-coating
* Keeping your crane viisually appealing year after year
nDurance is a technologically advanced and environmentally sound pre-treatment and paint process, based on nano technology combined with state-of-the-art e-coating and powder painting.

Read More about nDurance: https://www.hiab.com/en/global/ndurance

USP_657325

Film_646329

nDurance Video

nDurance

Keeping the slewing mechanism immersed in oil is a prerequisite in the
heavy-duty type of work that our cranes perform. The oil bath provides
smooth and precise slewing and reduces wear on the mechanism, keeping
repair and service costs to a minimum.

USP_657327

Image_657329

Oil Path illustration

Oil Bath

Double-rack slewing gives the slewing motion a smooth start and is especially
suitable for heavy-duty applications. The end cushion dampens
slewing effectively when approaching the limit. The double-rack design
is extremely reliable and also gives high torque – keeping maintenance
costs down and productivity up. Rack and pinion slewing provides reliable
operation even on inclines or slopes.

USP_657344

Image_1207578


Double Rack Slewing

Swivelling couplings increase the lifetime of hydraulic hoses. Hoses can
move more freely when the crane rotates which reduces wear. This means
you spend less time on repairs and have lower maintenance costs and
increased uptime.

The swivelling couplings are a JIC coupling rotating together with
the hose. These types of couplings are found on all hydraulic lines for
pressure, tank and slewing going from crane base to the control valve
and the boom system.

USP_657346

Swivelling Couplings

Safety+R System
Safety is key in every work place. Working fast and efficient another. With Safety+R system you fullfill all safety requirements to enhance safety of the driver and those in the vicinity. JONSERED recycling range has the Safety+R system with important safety features needed to get the job done as efficiently and safely as possible.
• VSL increases stability without compromising efficiency
• Over Load Protection (OLP)
• Operators Protection System (OPS), a virtual drivers safety cage when operating from the stand up platform
• Load Holding Valve (LHV) that safely holds the load in case of hose failure,

USP_657351

Safety+R System

Long live hoses!
Irregular loads such as logs, branches and scrap metal can be a problem and damage equipment – hydraulic hoses in particular are at risk. The Hose Protection Link, HPL, is a smart way of protecting them. Hydraulic hoses run from the crane tip through the link down to the rotator keeping them well protected, yet accessible for service and maintenance as necessary.

Read more about our features: https://www.hiab.com/en/global/forestry-features

USP_657364

Image_657366

HoseProtectionLink_Final_Original_67911.tif

Image_657367

Hose Protection Link Illustratuion

HPL (Hose Protection Link)

HIAB nDurance protects the crane from the elements with the best in surface protection. Technologically advanced and environmentally sound, this high-tech painting system first shields the crane’s parts with an ultra-thin nanoceramic layer that prevents corrosion. Afterwards they receive a lacquer polymer e-coating and a durable powder coating, creating stunning good looks that will last the crane’s lifetime

Film_4922

Hose Protection Link

Film_4920

Premium Top Seat
