- HIAB X-CLX 088
HIAB X-CLX 088
LOADER CRANES
A strong and balanced access model to the HIAB loader crane range of products.
Manually controlled with optional remote control.
For non CE markets.
8,3 Tm range capacity loader crane.
Manually controlled with optional remote control.
For non CE markets.
8,3 Tm range capacity loader crane.

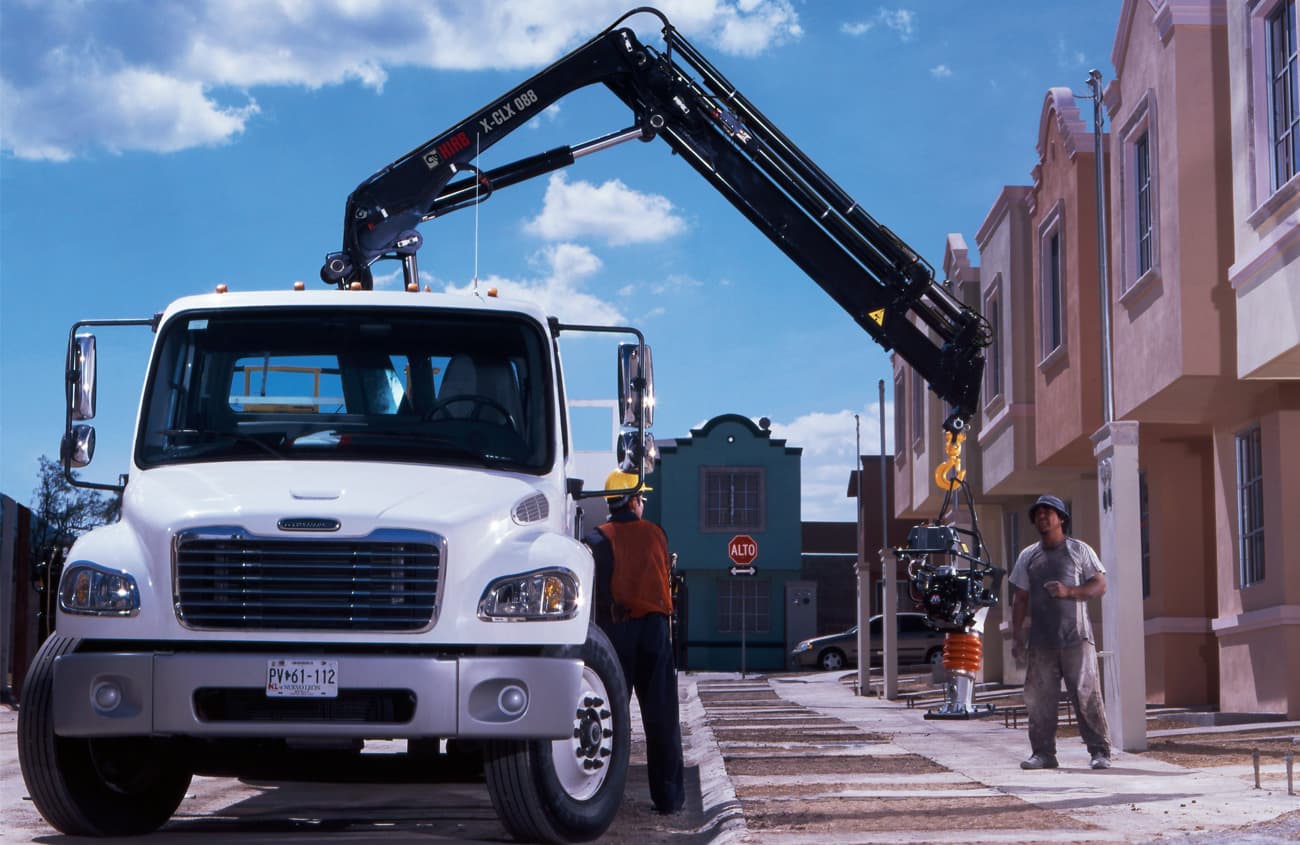

The HIAB X-CLX 088 represents the ‘mainstream’ workhorse in the light range segment of loader cranes.
The CLX driven cranes are one of the best non CE manual control systems that can be found on the market.
With this model you don’t have to compromise, while accessing the HIAB world of reliability and safety systems for which the brand is known for.
The crane's outreach from 5,4m to 13,7m gives you the needed flexibility for carrying out jobs day after day, as a reliable partner.
The industry leading two years warranty coverage matched to the three years for steel parts assure a continuous working life of the crane. The special nDurance paint protection finish further contributes to making the crane look and last longer.
The CLX driven cranes are one of the best non CE manual control systems that can be found on the market.
With this model you don’t have to compromise, while accessing the HIAB world of reliability and safety systems for which the brand is known for.
The crane's outreach from 5,4m to 13,7m gives you the needed flexibility for carrying out jobs day after day, as a reliable partner.
The industry leading two years warranty coverage matched to the three years for steel parts assure a continuous working life of the crane. The special nDurance paint protection finish further contributes to making the crane look and last longer.
Standard & Optional features
Model specifications
| Control System |
| Hydraulic Extension Outreach (Ft) |
| Hydraulic Extension Outreach (M) |
| Lifting Capacity (Kg) |
| Lifting capacity class (kNm) |
| Manual Extension Outreach (Ft) |
| Manual Extension Outreach (M) |
| Weight (Kg) |
| Weight (Lbs) |
| HIAB X-CLX 088B-1 | HIAB X-CLX 088B-2 | HIAB X-CLX 088B-3 | HIAB X-CLX 088BM-1 | HIAB X-CLX 088BM-2 | HIAB X-CLX 088BM-3 | HIAB X-CLX 088BMS-1 | HIAB X-CLX 088BMS-2 | HIAB X-CLX 088BMS-3 | HIAB X-CLX 088BS-1 | HIAB X-CLX 088BS-2 | HIAB X-CLX 088BS-3 | HIAB X-CLX 088E-1 | HIAB X-CLX 088E-2 | HIAB X-CLX 088E-3 | HIAB X-CLX 088E-4 | HIAB X-CLX 088E-5 | HIAB X-CLX 088ES-1 | HIAB X-CLX 088ES-2 | HIAB X-CLX 088ES-3 | HIAB X-CLX 088ES-4 | HIAB X-CLX 088ES-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX | CLX |
| 17 | 23 | 30 | 16 | 22 | 29 | 18 | 24 | 31 | 38 | 44 | 17 | 23 | 30 | 37 | 43 | ||||||
| 5.4 | 7.2 | 9.2 | 1.7 | 3.6 | 5.5 | 1.7 | 3.6 | 5.5 | 5.1 | 7 | 8.9 | 5.5 | 7.5 | 9.5 | 11.6 | 13.7 | 5.2 | 7.2 | 9.2 | 11.3 | 13.4 |
| 3400 | 2820 | 2480 | 3150 | 2700 | 2360 | 3700 | 3600 | 3350 | 3850 | 3700 | 3450 | 3500 | 3250 | 3000 | 2820 | 2640 | 4150 | 3850 | 3600 | 3350 | 3100 |
| 80 | 78 | 75 | 75 | 72 | 69 | 76 | 71 | 69 | 81 | 77 | 75 | 81 | 77 | 74 | 72 | 70 | 82 | 78 | 75 | 72 | 70 |
| 30 | 37 | 37 | 29 | 36 | 36 | 31 | 38 | 44 | 44 | 30 | 37 | 43 | 43 | ||||||||
| 9.2 | 11.3 | 11.3 | 8.9 | 11 | 11 | 9.5 | 11.6 | 13.7 | 13.7 | 9.2 | 11.3 | 13.4 | 13.4 | ||||||||
| 970 | 1080 | 1170 | 1079 | 1177 | 1209 | 1069 | 1167 | 1199 | 960 | 1070 | 1160 | 970 | 1080 | 1170 | 1260 | 1340 | 960 | 1070 | 1160 | 1250 | 1330 |
| 2138.5 | 2381 | 2579.4 | 2116.4 | 2358.9 | 2557.4 | 2138.5 | 2381 | 2579.4 | 2777.8 | 2954.2 | 2116.4 | 2358.9 | 2557.4 | 2755.8 | 2932.1 |
