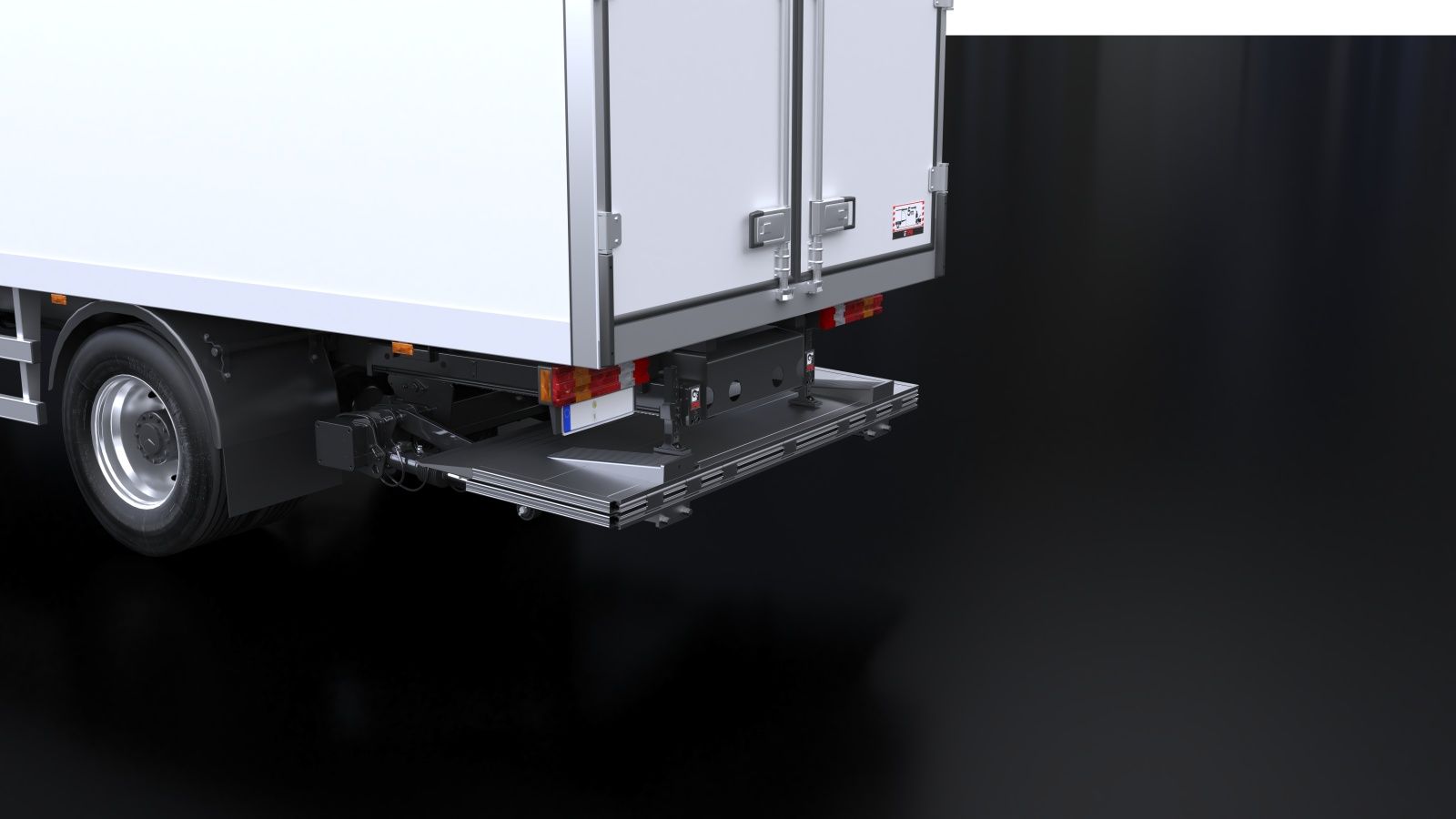

ZEPRO ZS 150/200/250 Mk2

折りたたみ式プラットフォーム(1台)搭載の中量/重量型スライダーリフトは、トラックの下に設置するために特別に考案されています。1500、2000、2500 kgの吊り上げ能力。
The ZS Mk2 features a powder-painted, high-strength steel frame and platforms in different sizes, and options.

Robust and sturdy design with corrosion-protected cylinders and the new solid state control system makes this the perfect choice for all heavy trucks.

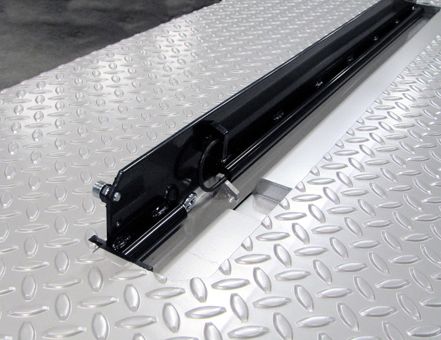

Smooth movement is enabled by a sliding system that has a hydraulic motor driving two sprockets which rotate and run under the slide profiles guided by simple, sturdy chains. Operation noise is kept to a minimum with a built-in hydraulic unit that also houses sensitive components.

A slimline version designed to maximise ground clearance is also available.

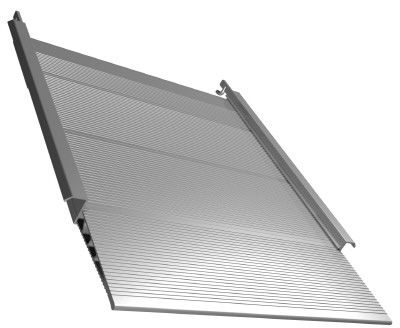

All capacity versions offer spring-assisted, folding aluminium platforms to ensure low weight and ease of use when operating manually.

ZEPRO ZS 150-135ZEPRO ZS 150-155ZEPRO ZS 150-175ZEPRO ZS 200-135ZEPRO ZS 200-155ZEPRO ZS 200-175ZEPRO ZS 250-135ZEPRO ZS 250-155
15001500150020002000200025002500
19651965196519651965196519651965
24002400240024002400240024002400
13301510170013301510170013301510

Kim Axdal Transport, Denmark

Introducing the ZEPRO ZS Mk2
