Image_674599

SB-Series_Main-Image

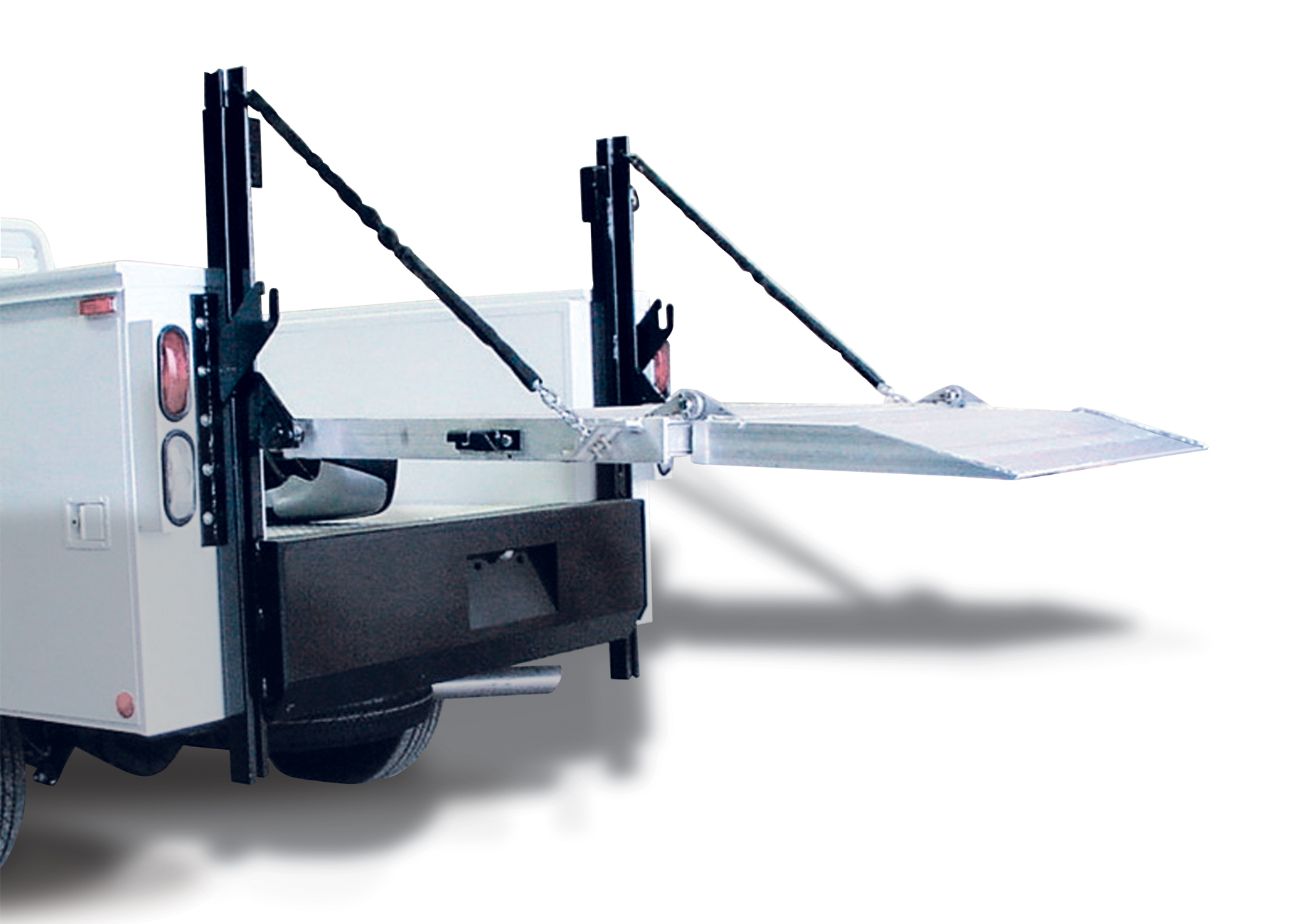

WALTCO SB Series

PagePreview

Service and Support

Request a quote

Features vertical tracks that enable the platform to move via cables or chains in conjunction with a hydraulic cylinder (or two hydraulic cylinders directly attached to the platform) for maximum strength and performance. The tracks are welded to the rear frame of the service body to ensure optimum safety.

SB-12

SB-16

SB/AP-12

SB/AP-16

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

WALTCO offers the option to galvanize the mainframe of the liftgate. This option extends leadtime by 8 weeks, but increases the overall life of your liftgate. When you galvanize your liftgate, you protect it from rust and harsh weather elements. This is a sound investment for the total life of the liftgate.

USP_677163

Galvanized Mainframe

Level ride steel platform and rail type design with chain and sprocket drive ensures smooth operation and eliminates costly cable replacement.

USP_883665

Entry Level Rail - Service Truck Rail, up to 1,600 lb. Capacity.

USP_882367

Bed heights 25"-46"

Equipped with torsion spring assist to make folding and unfolding the platform simple and smooth.

USP_677167

Easy-Fold

Built-in toe deflector, anti-skid treadplate platform, fewer pinch points, and level ride increase safety for the operator.

USP_883686

Safety+ Features

Powder coat finish on key liftgate components produces a high-quality, corrosion resistant finish.

USP_883687

Powder Coat Finish

USP_676805

Above Floor Travel

SB-12	SB-16	SB/AP-12	SB/AP-16
Steel	Steel	Alu	Alu
30	36	30	42
61	61	61	61
1250	1600	1250	1600
46	46	46	46
25	25	25	25

Cookies on Hiab.com

Change location

WALTCO SB Series

Tail Lifts

Downloads

Standard & Optional features

Model specifications

Find your local HIAB & MOFFET Sales Representative

HIAB or MOFFETT Service Center

Find a WALTCO Dealer or WALTCO Service Center

Find a MULTILIFT Dealer or MULTILIFT Service Center


Platform Types
Platform Length Max (in)
Platform Width Max. (in)
Lifting Capacity (Lbs)
Bed Height Max (In)
Bed Height Min (In)
